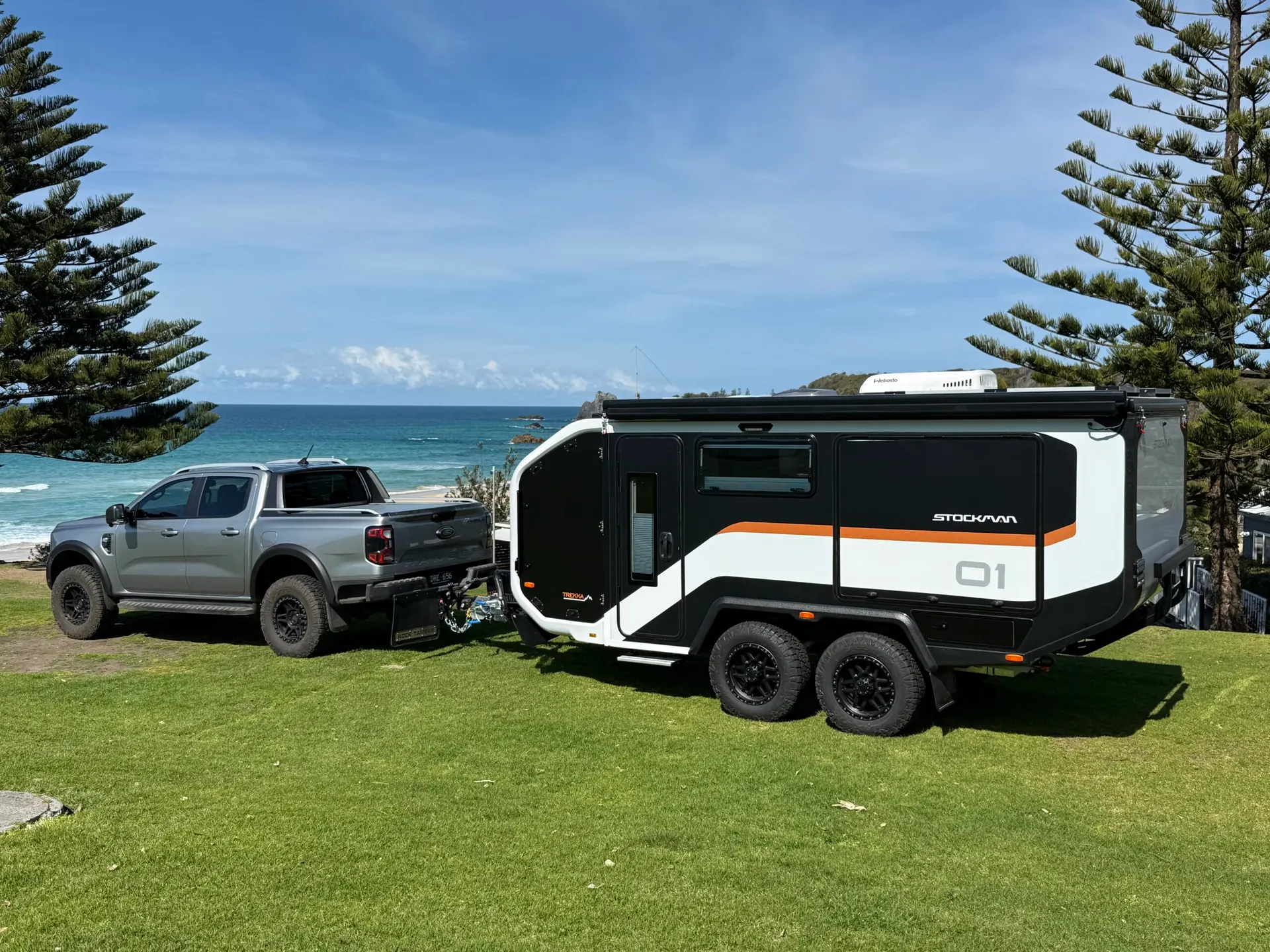

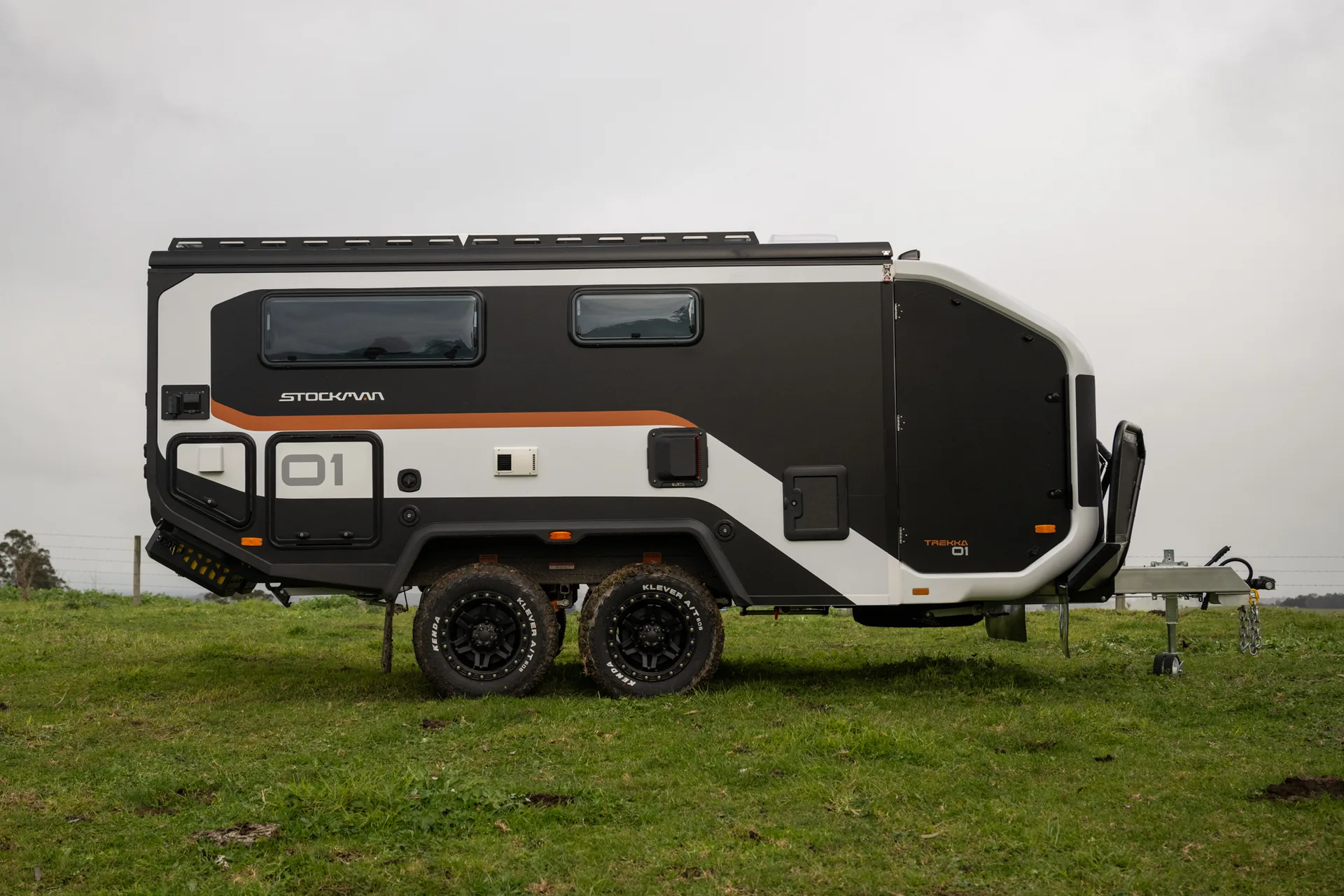

Take your toys with you. Thoughtfully engineered, beautifully constructed — the Trekka 01 is made for active couples who want to bring their gear. On- and off-road models available.
From the moment you step inside you’ll see what sets us apart. It’s not just how it looks, but how intuitive everything works. Born from over twenty years of outback torture testing, the Trekka brings Stockman’s proven durability into a new generation.
On-Road for sealed roads and hard-pack gravel. Ultra XT for off-grid travel — airbag suspension, A/T tyres, off-grid aircon. Platinum XT for owners who want the most-equipped Trekka straight off the truck.
Tare 2,435kg · ATM 3,100kg · Ball 135kg
Tare 2,485kg · ATM 3,100kg · Ball 135kg
Tare 2,540kg · ATM 3,400kg · Ball 152kg
Cabin, storage, kitchen, power, suspension — the systems that decide whether a long trip feels easy or hard.

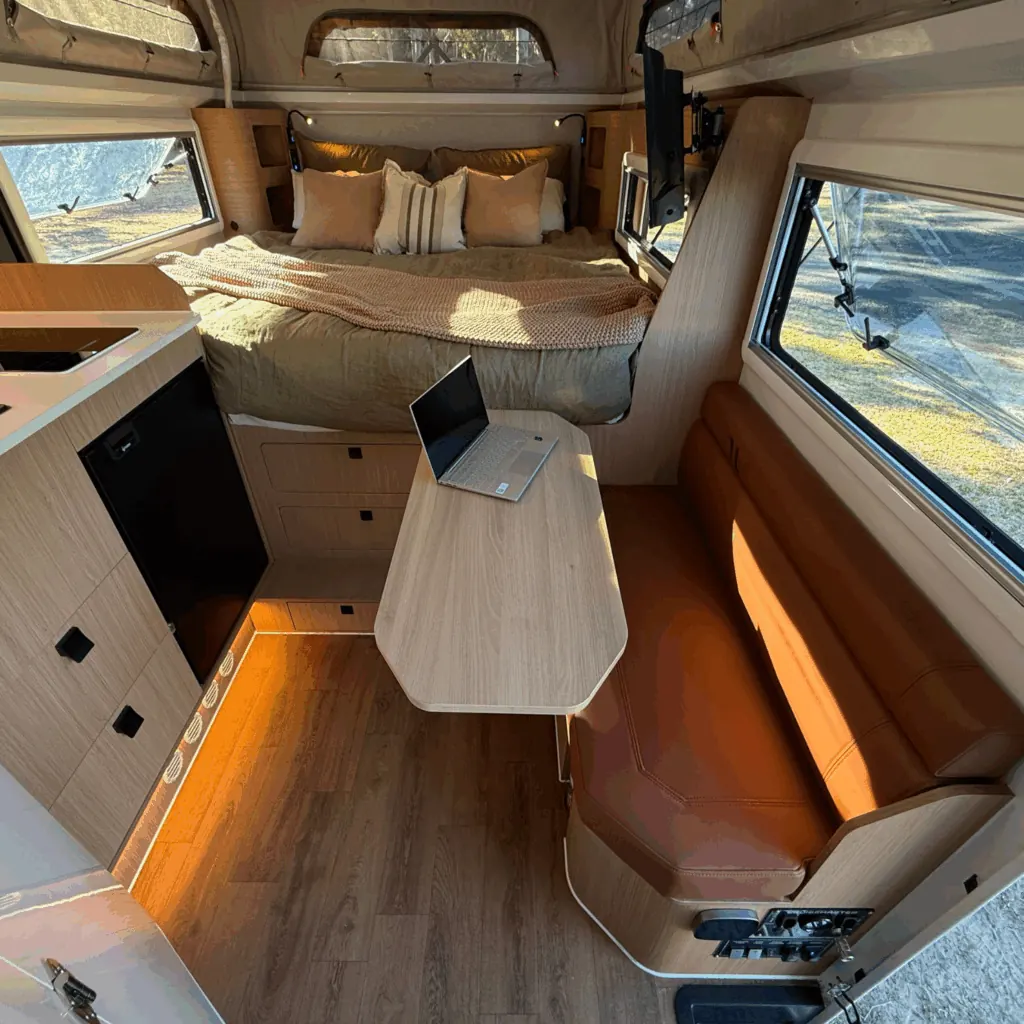

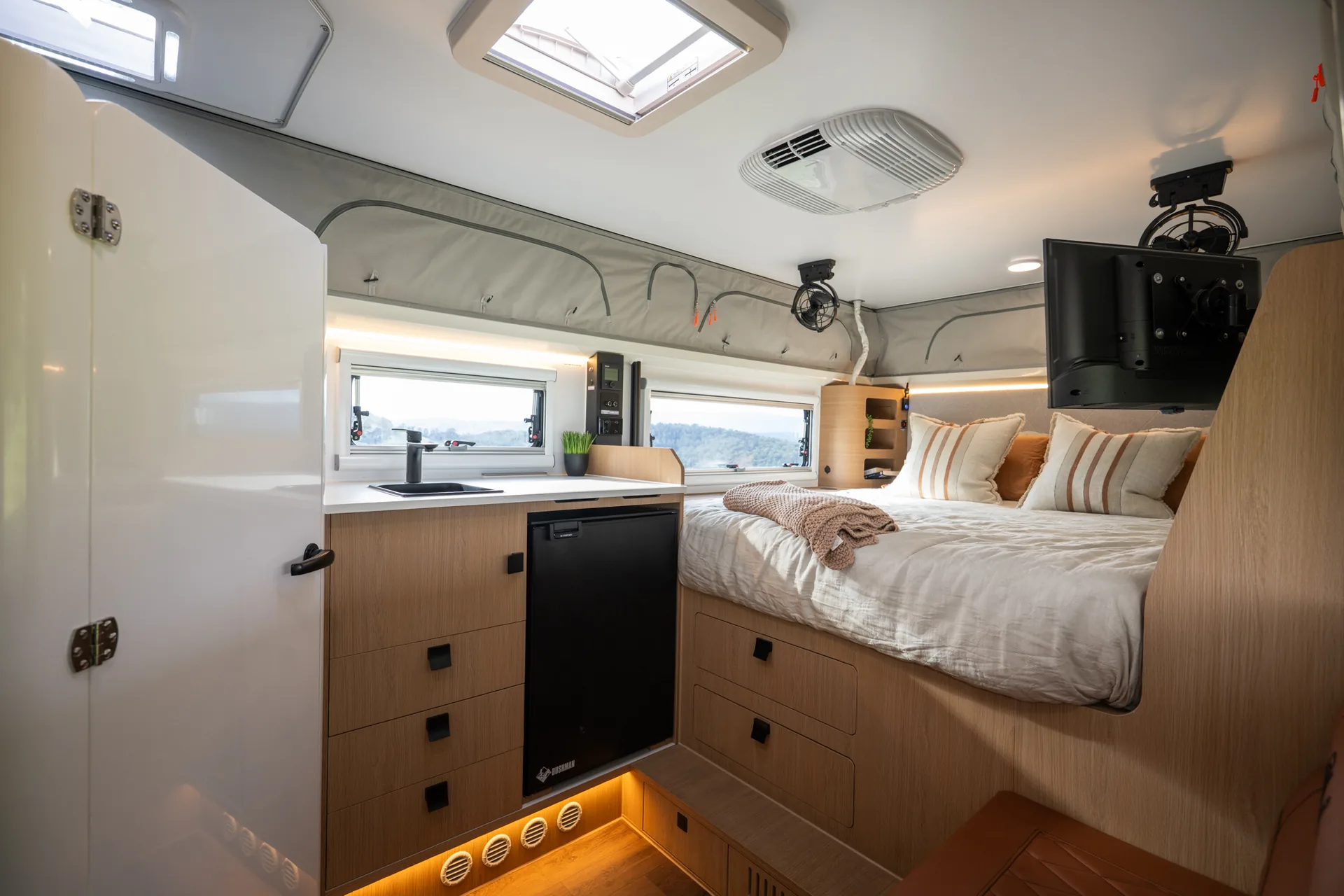

A queen inner-spring bed, an indoor dinette and an internal bathroom — all behind solid walls. No canvas to set up, no poles to find.
When the rain comes through or the wind picks up, you close the door and stay comfortable.

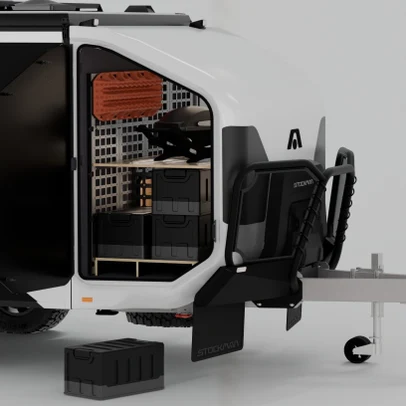

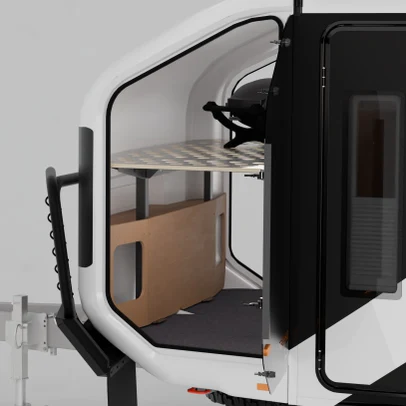

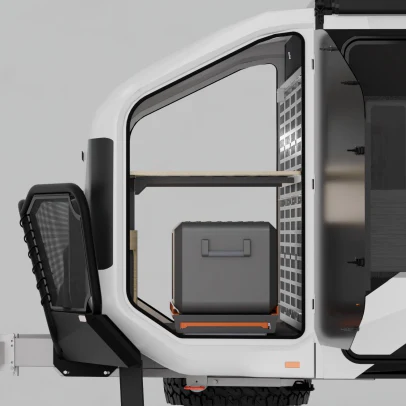

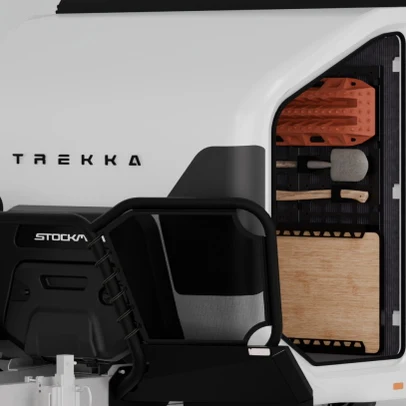

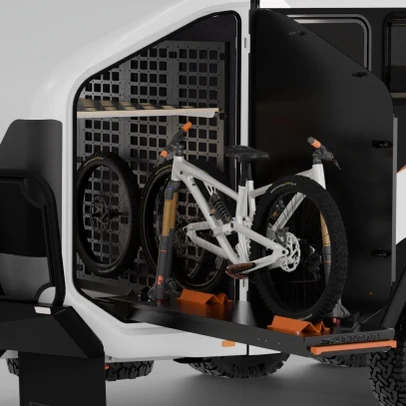

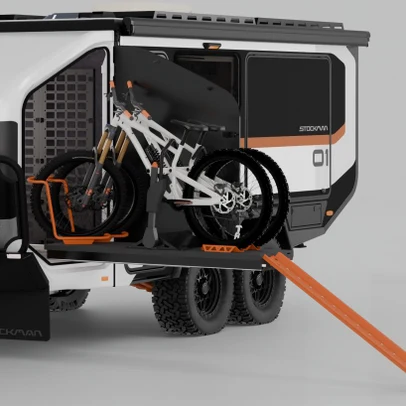

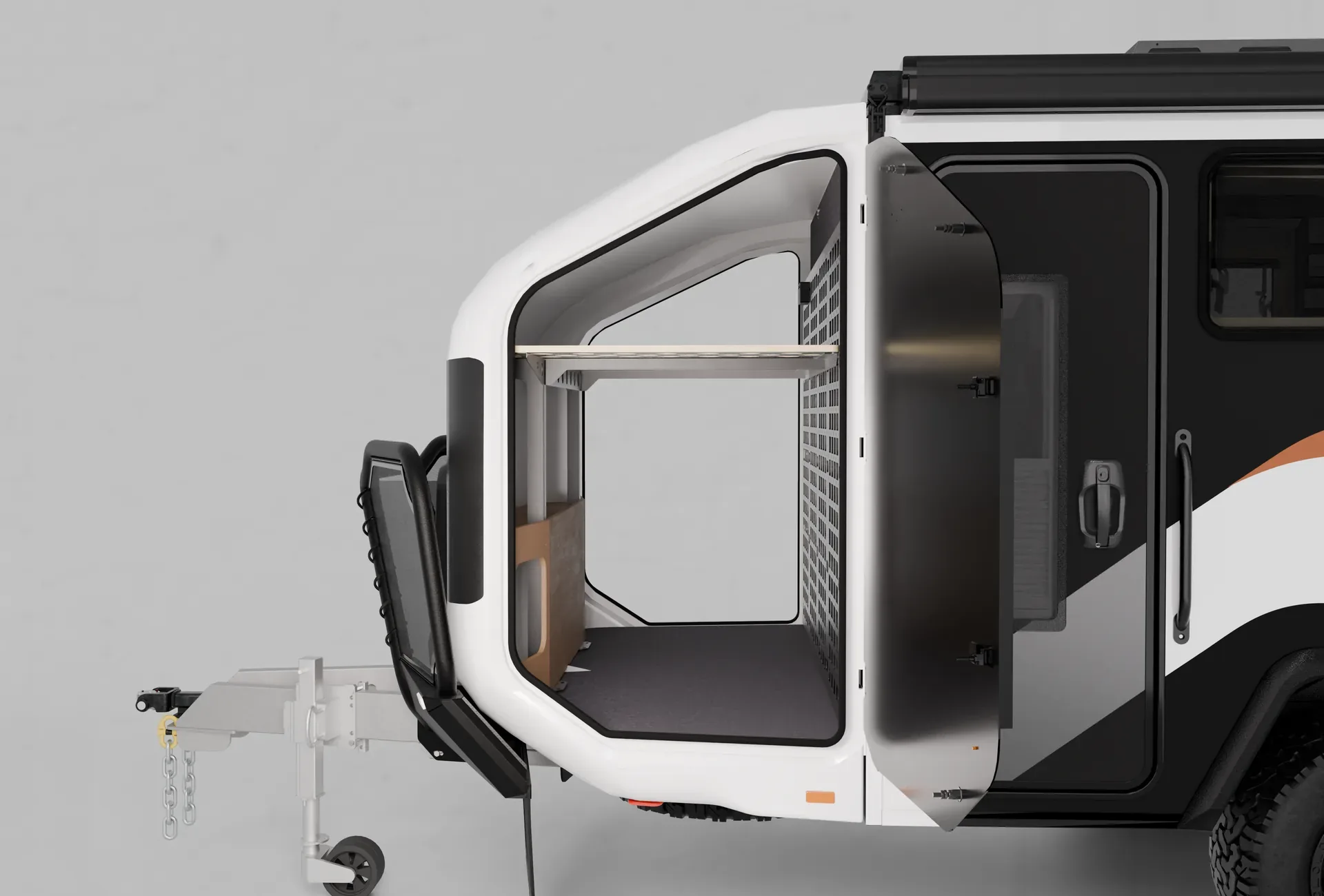

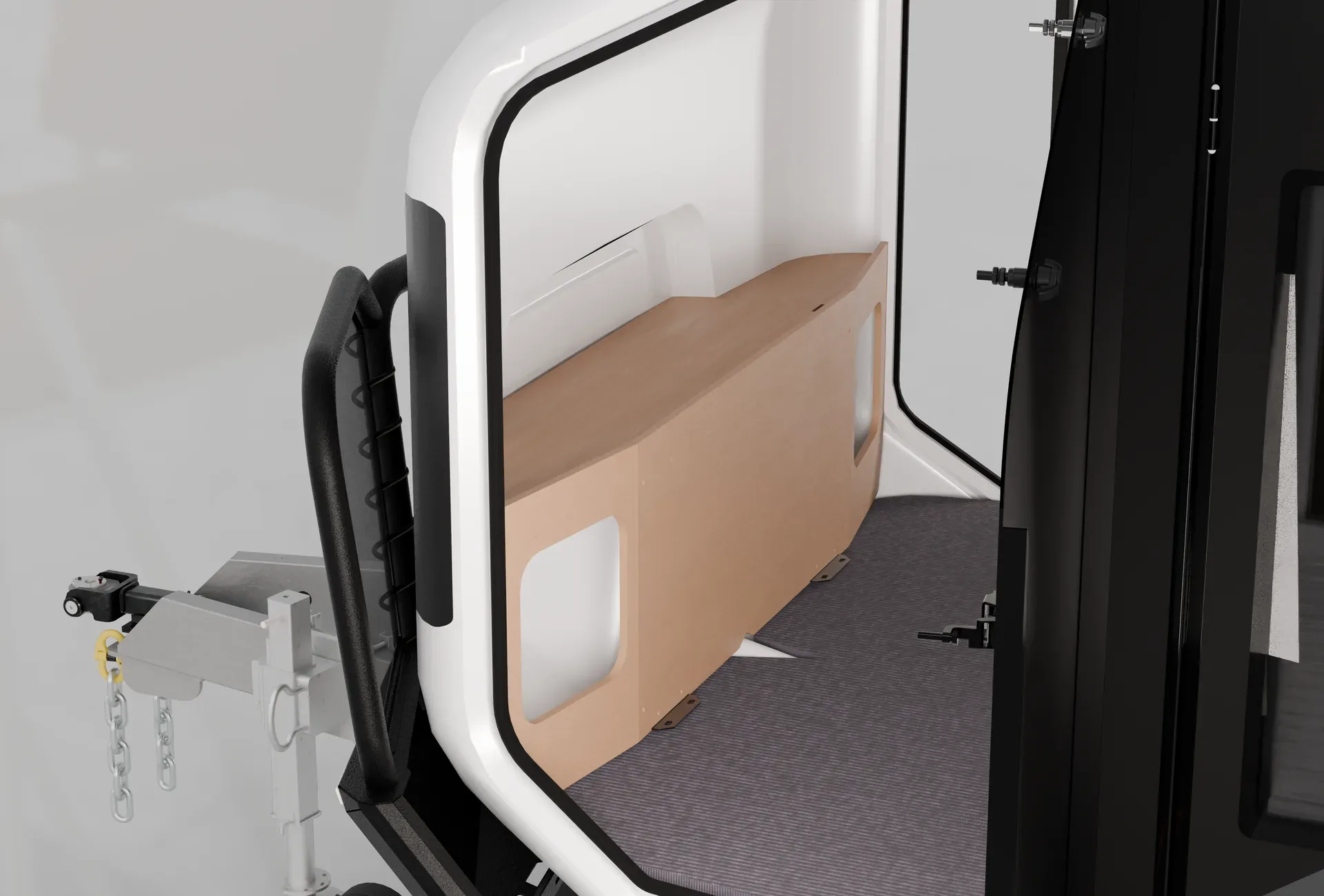

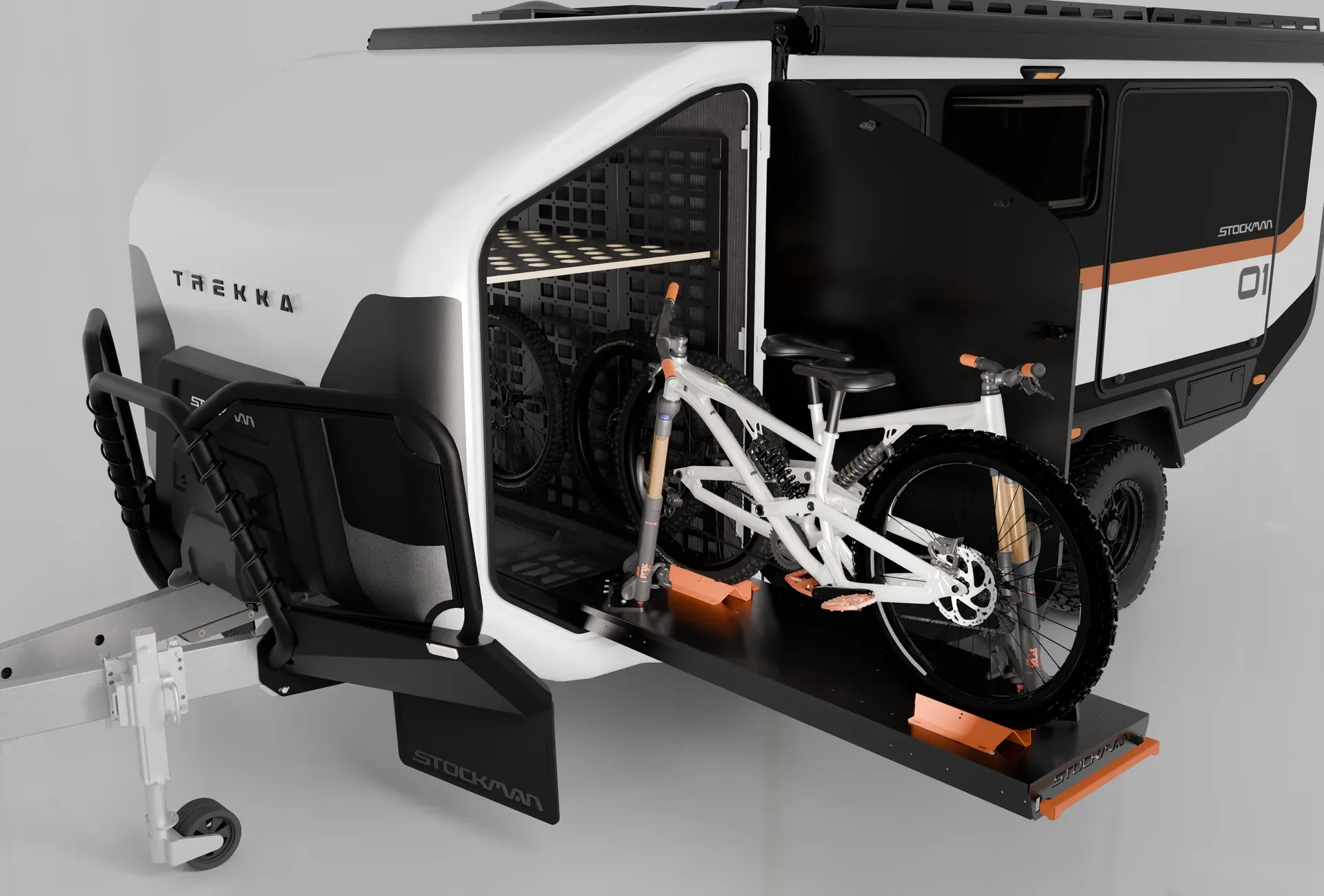

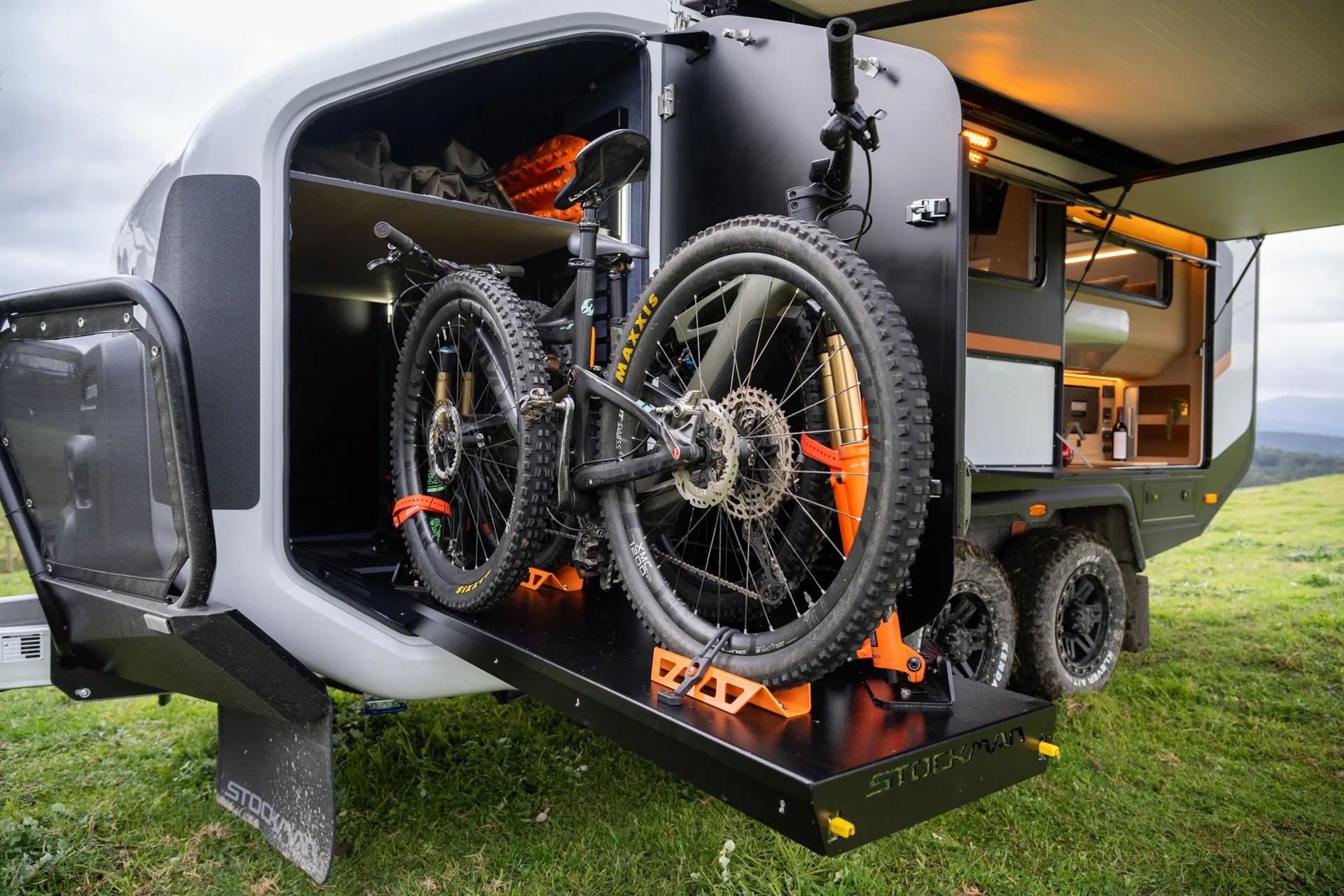

The extra-large front nosecone is purpose-built to keep all your sports equipment safe and dry — large enough for two e-bikes, or surfboards and inflatable paddle boards.

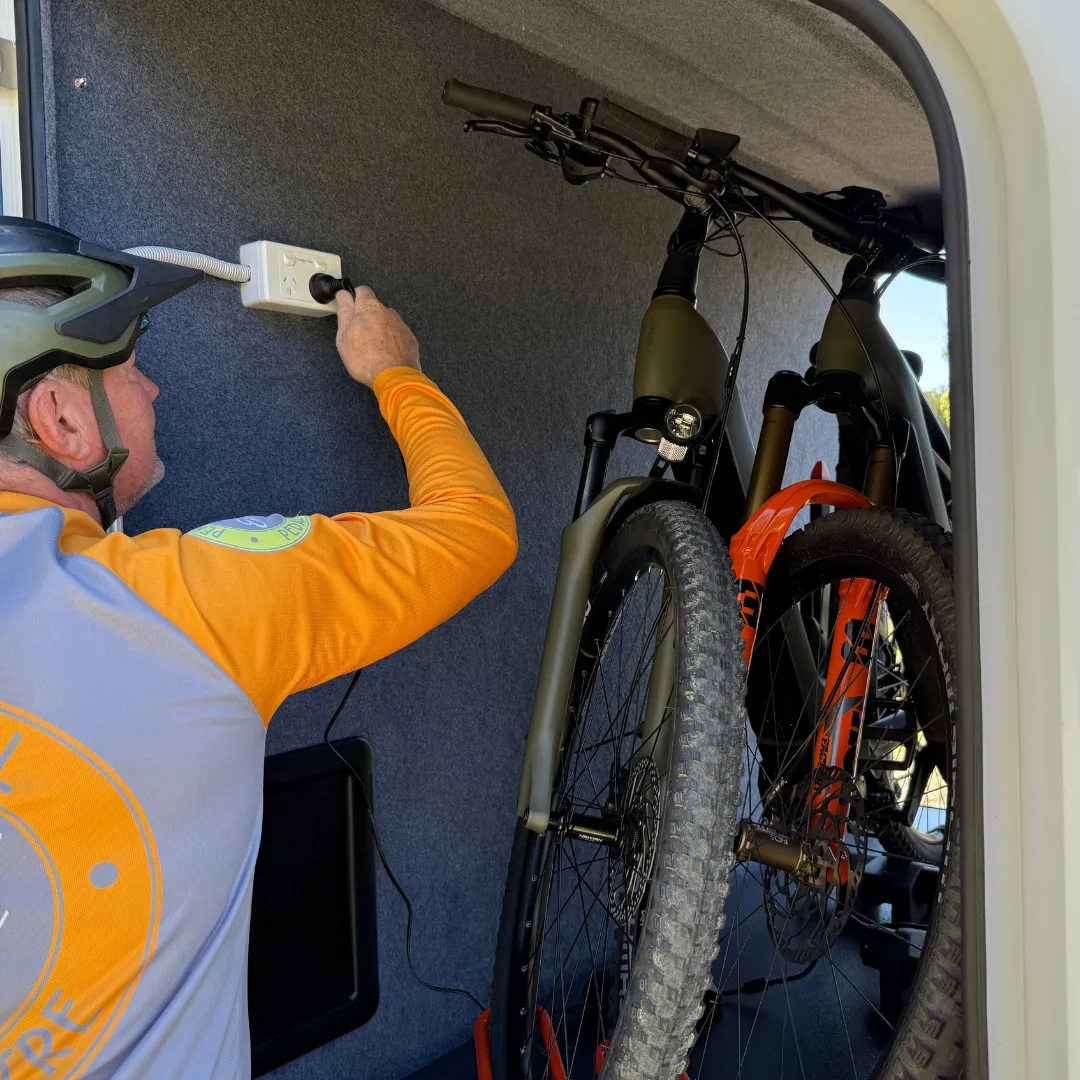

240V and 12V outlets inside keep the bikes charged and a second fridge running while you tow.
Glide over the rough stuff, and level up at camp with the push of a button. No more chocks on sloping sites.

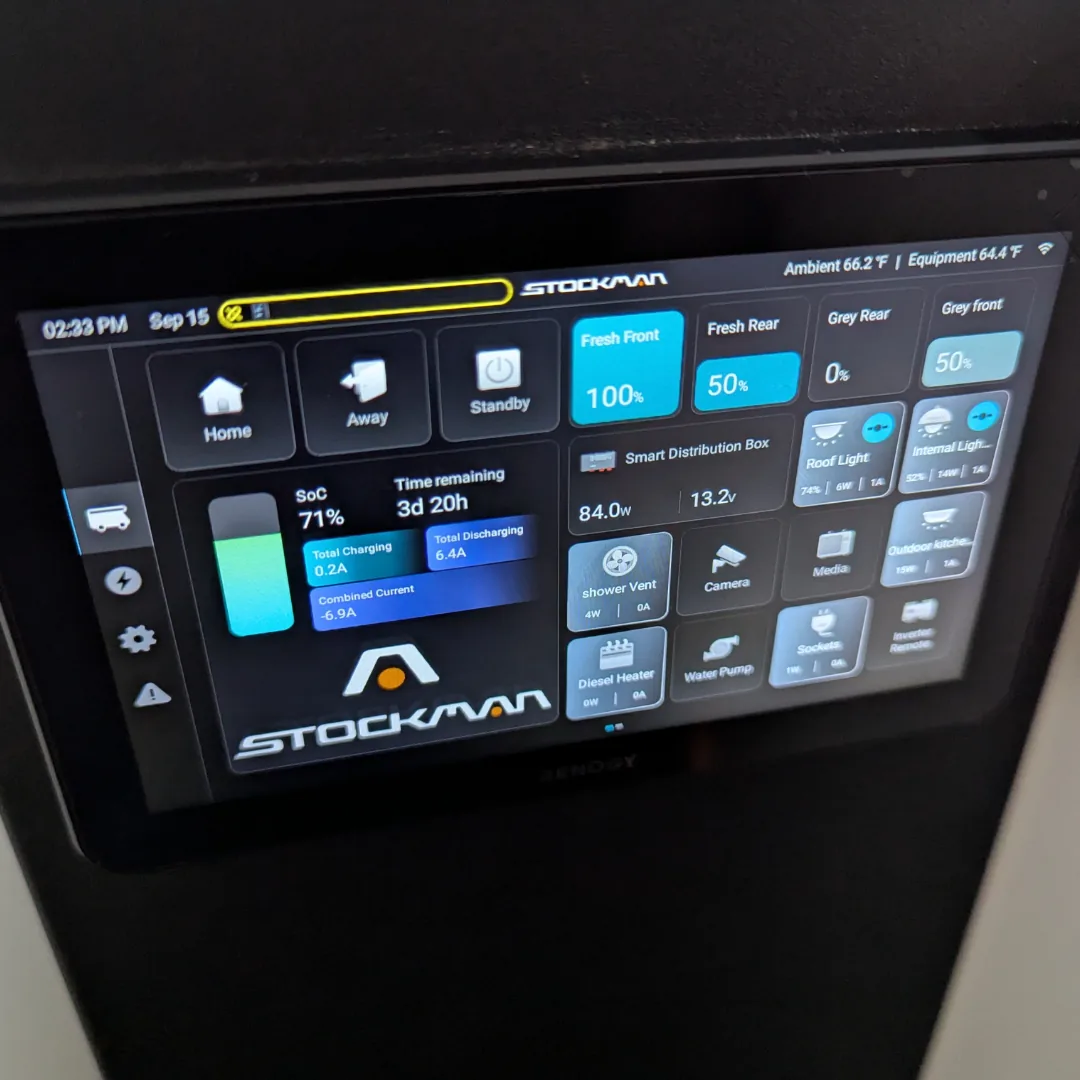

The same Renogy power system runs all three Trekkas: 70A AC, 50A DC-DC, 60A MPPT solar charging, a 3000W inverter and a Bluetooth touchscreen — sized 300Ah / 600Ah / 900Ah by model.
Comfort inside, room for the gear, and the power and climate kit to stay out longer.

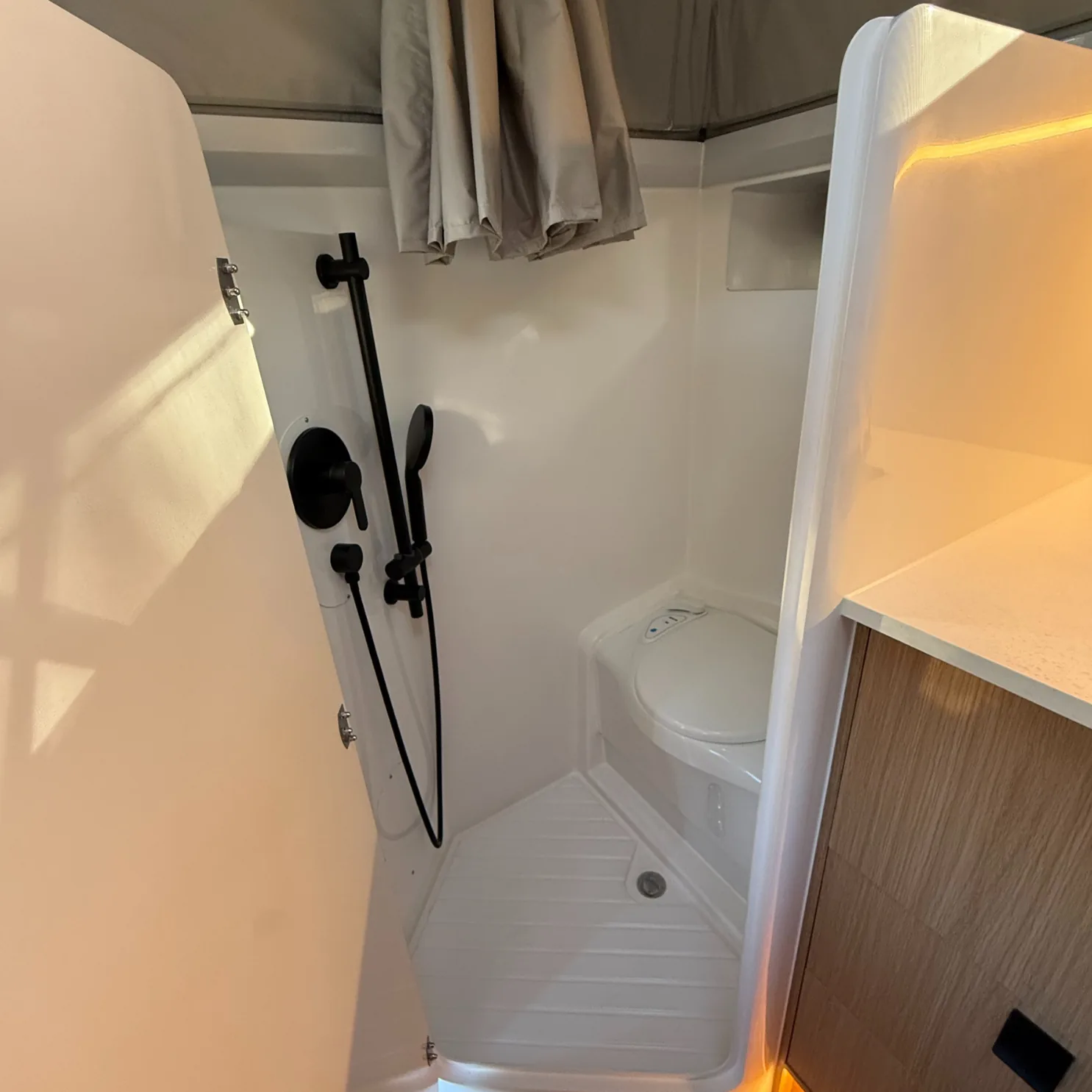

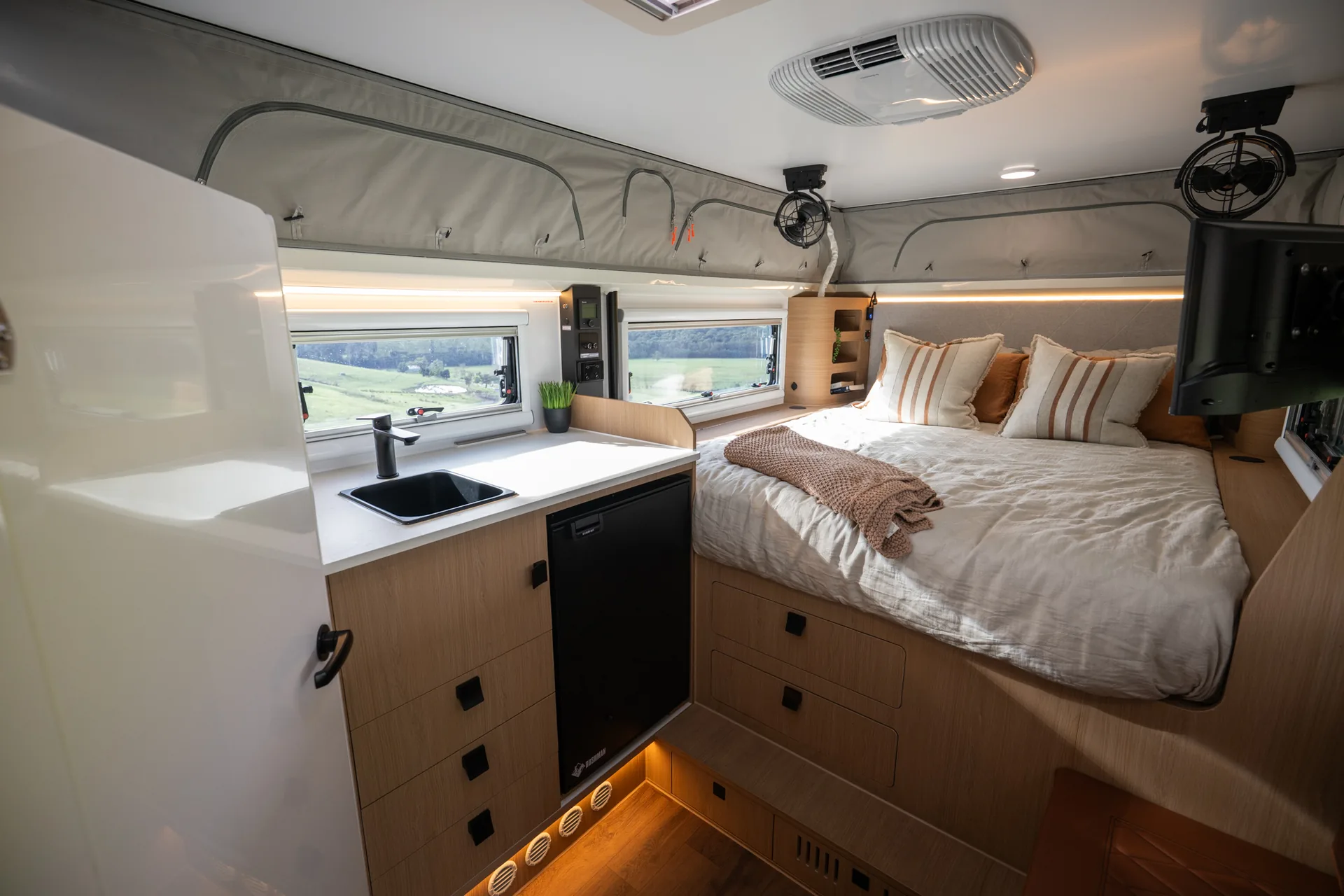

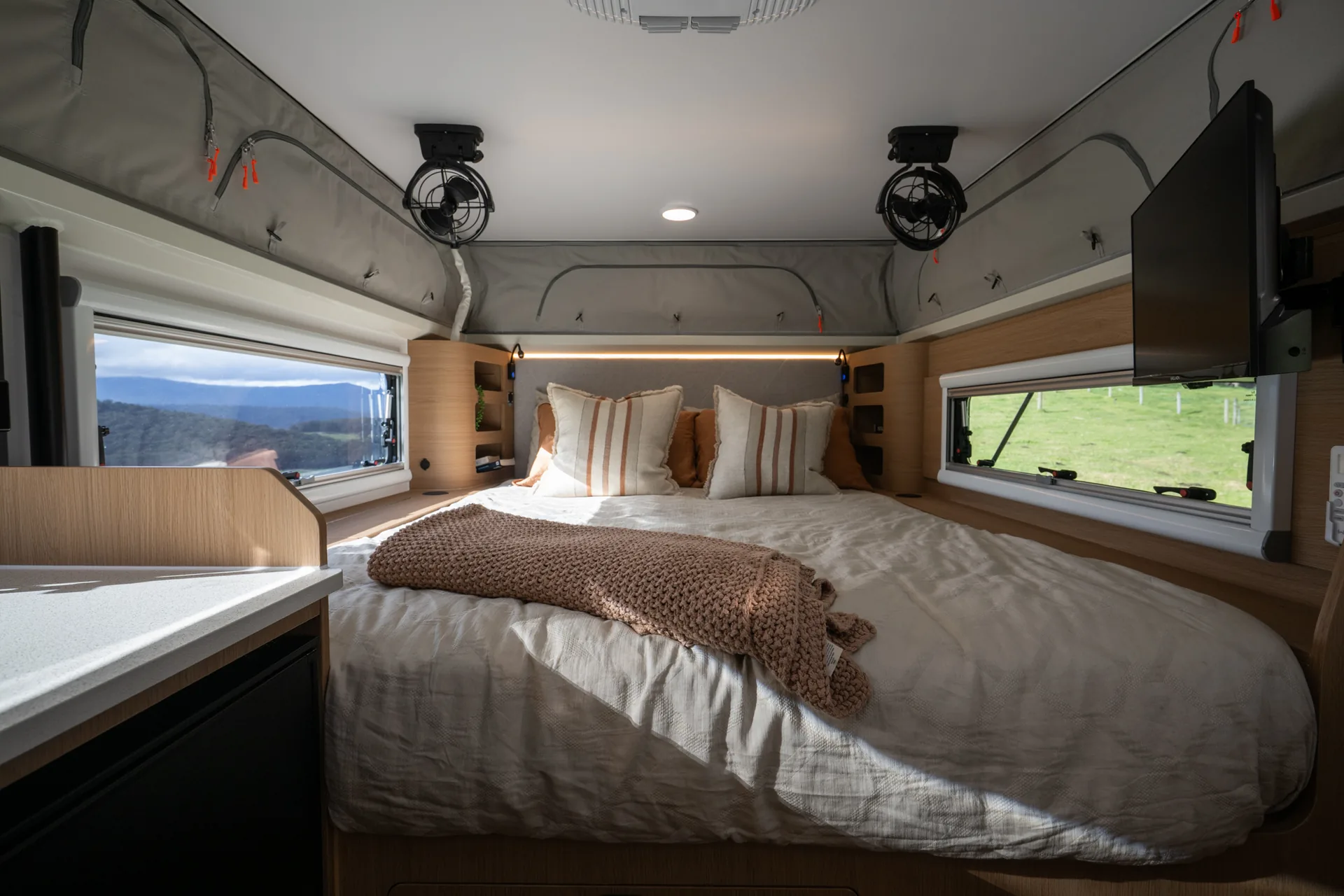

Queen inner-spring bed, indoor dinette and an internal bathroom — sealed from the weather behind solid walls.

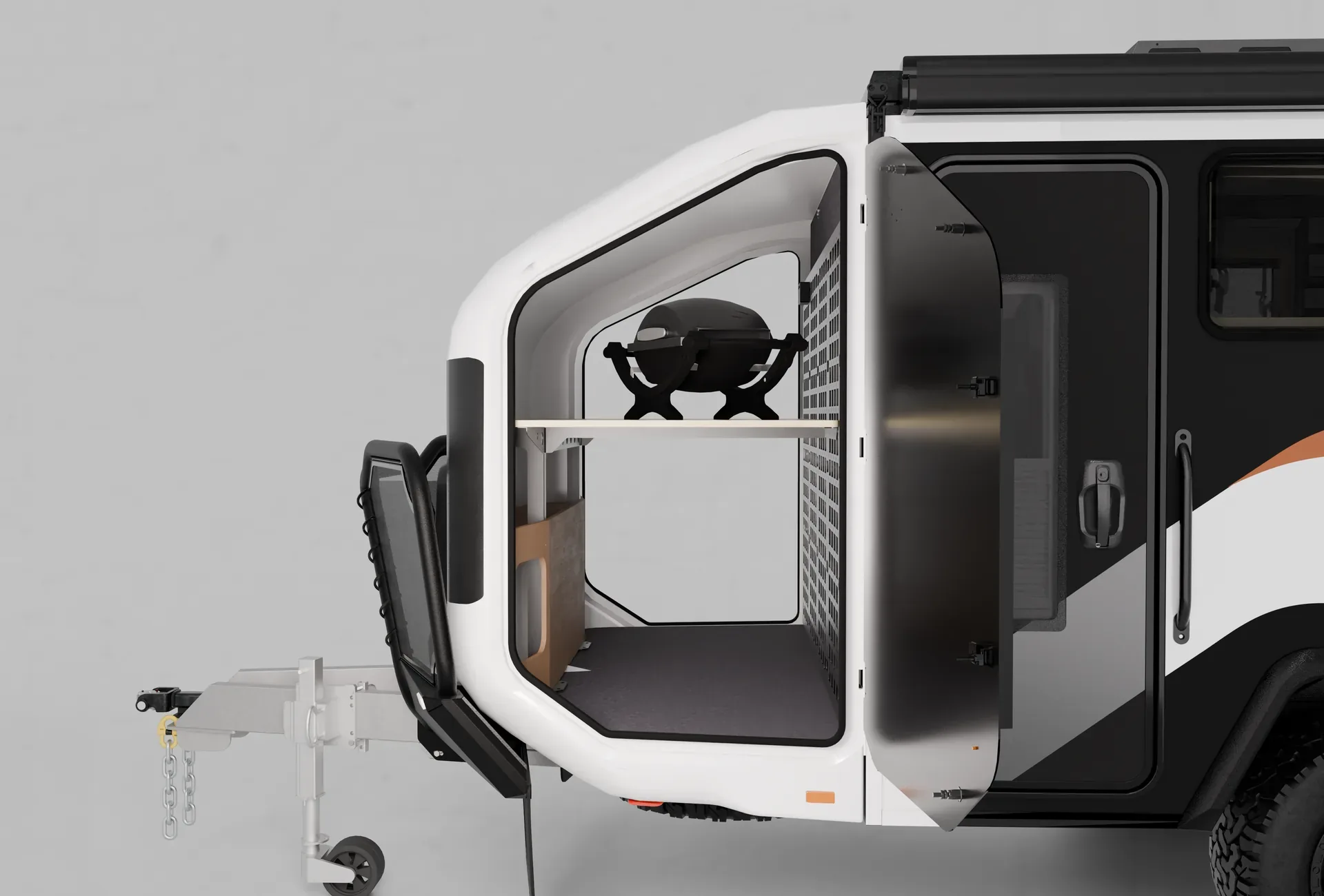

A fibreglass nosecone for two e-bikes, surfboards or paddle gear, with 240V and 12V outlets to keep them charged.

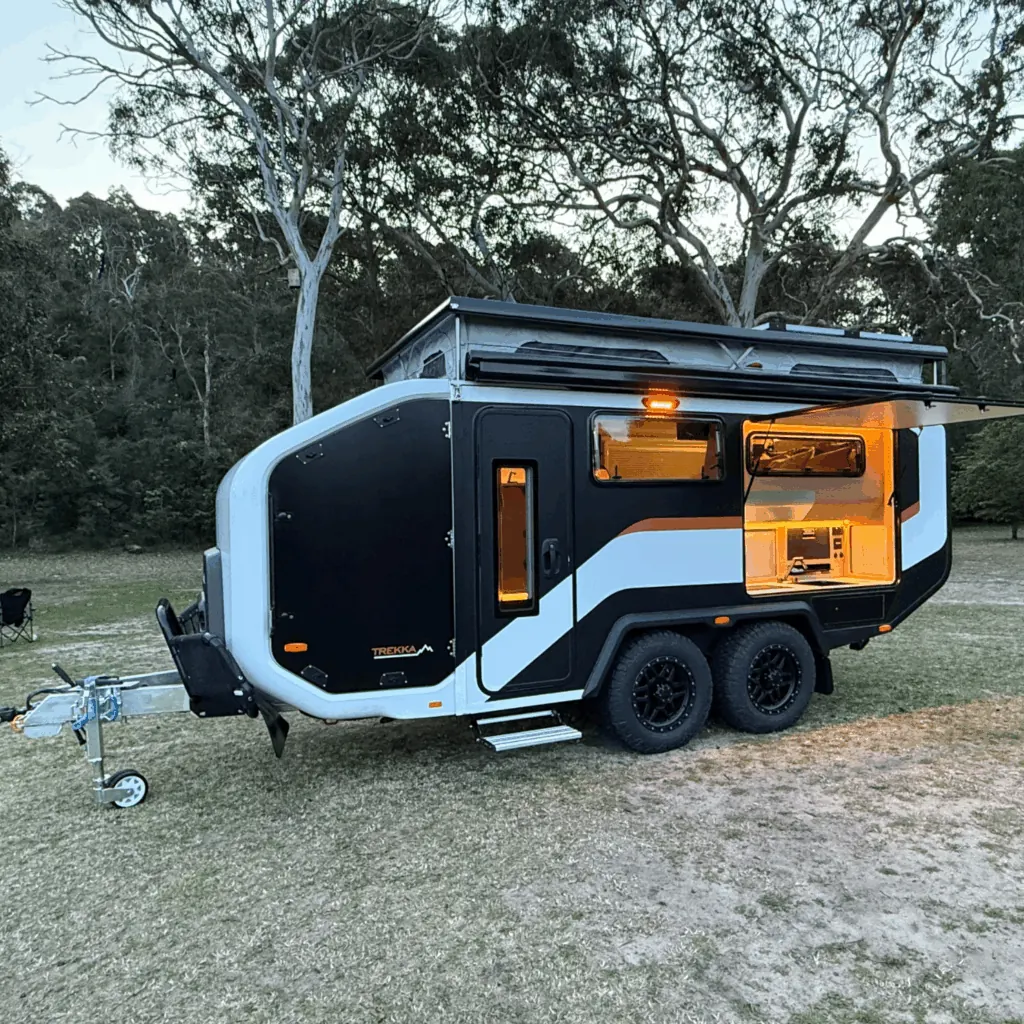

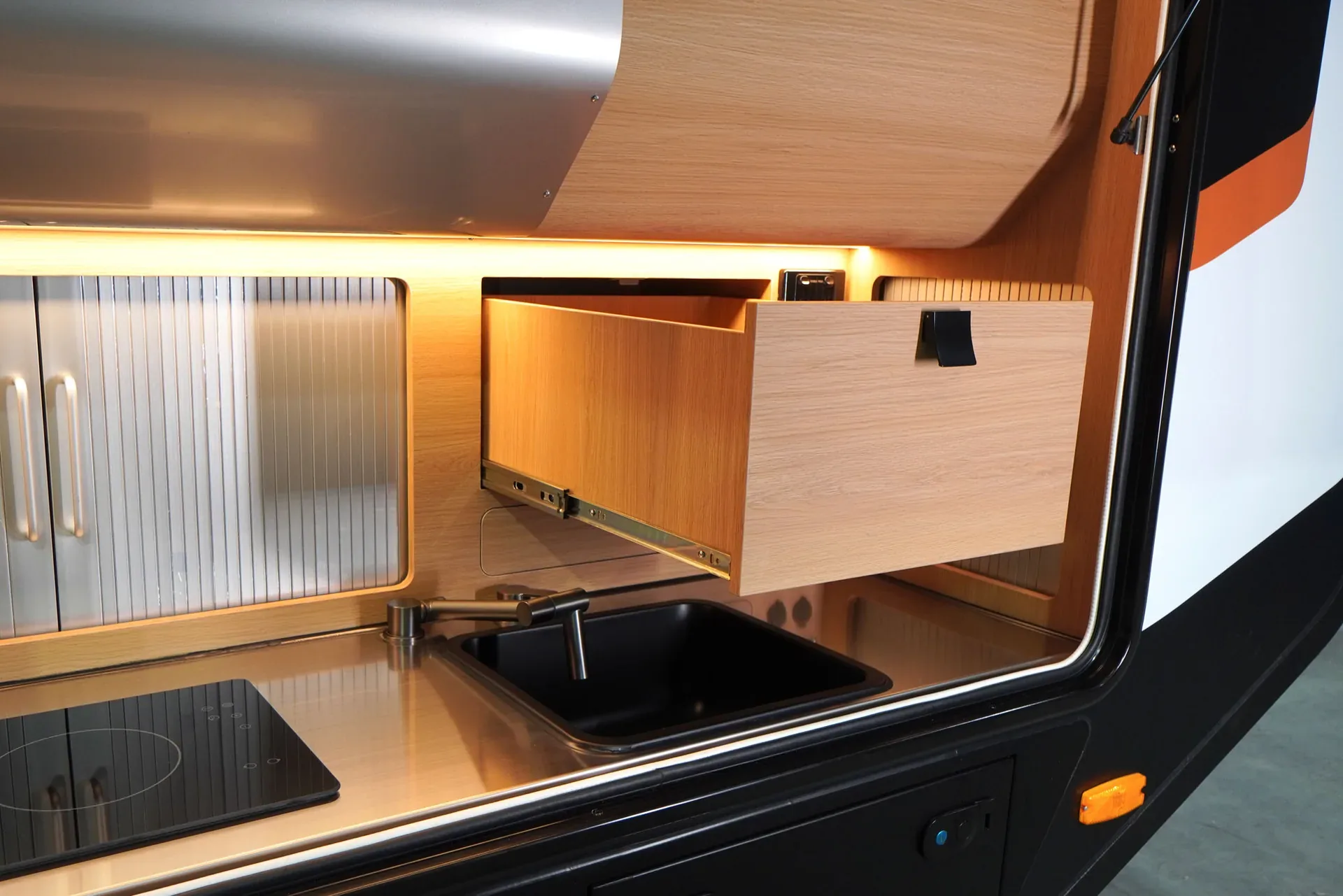

A sheltered alcove kitchen with a double induction cooktop, plumbed sink with hot and cold water, and bench and pantry space.

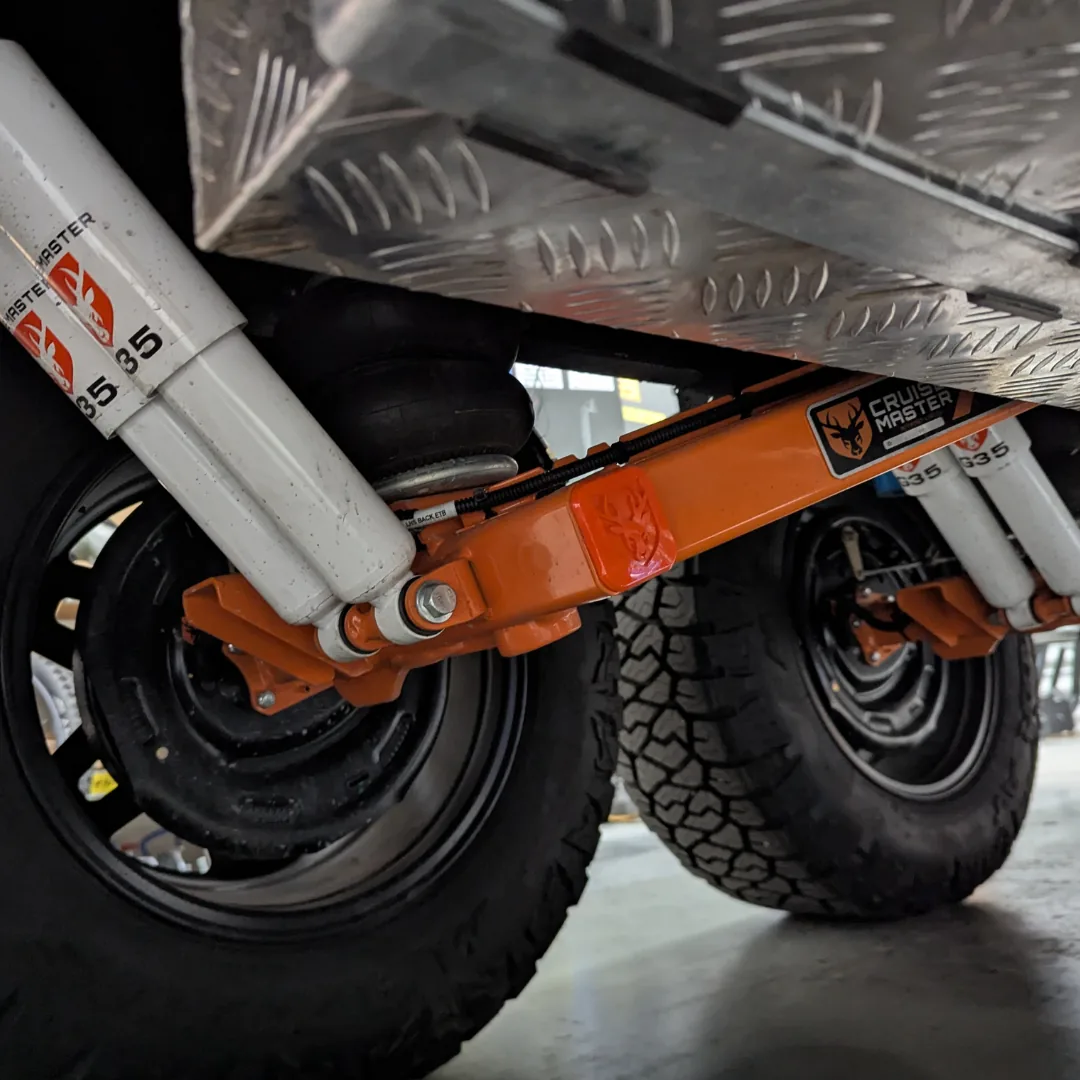

Tandem coil-spring (On-Road), XT airbag (Ultra XT) or self-levelling Body Control System (Platinum XT).
Internal hot and cold water and cabin heating, run from diesel — proven in Australian conditions.
300Ah / 600Ah / 900Ah lithium by model, roof solar, 3000W inverter, Bluetooth touchscreen.

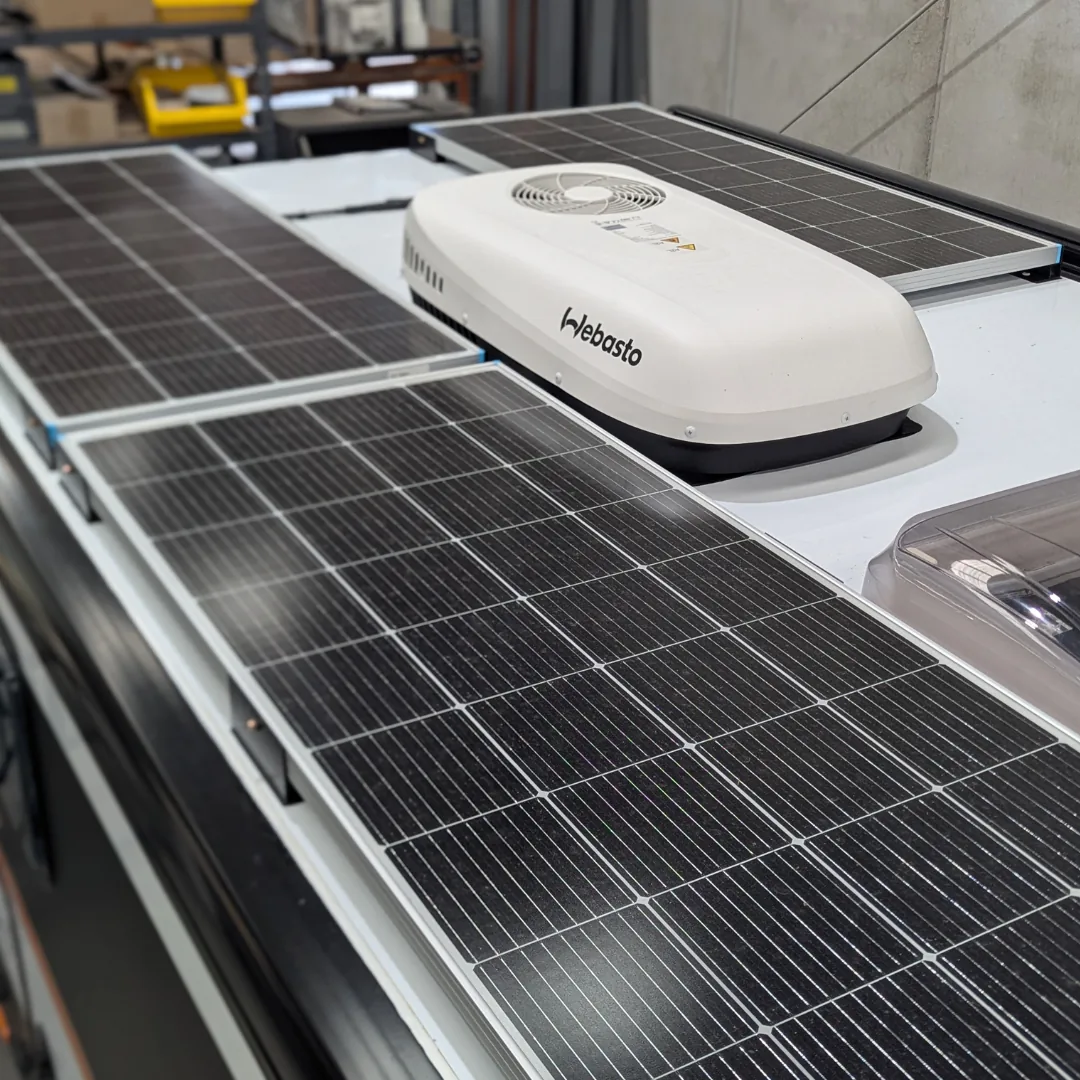

Low-draw rooftop aircon that runs off battery and solar. Standard on Ultra XT and Platinum XT, optional on On-Road.

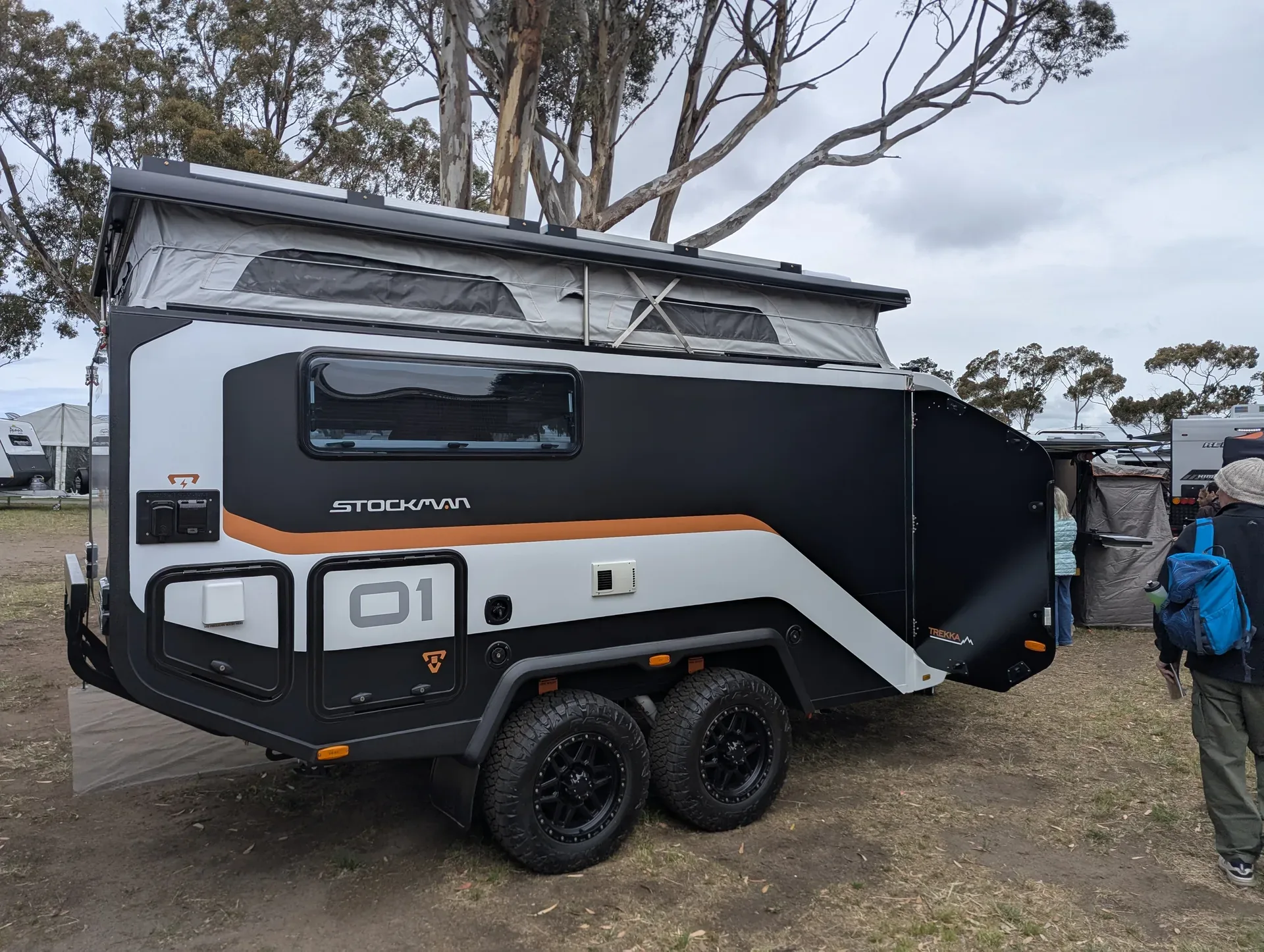

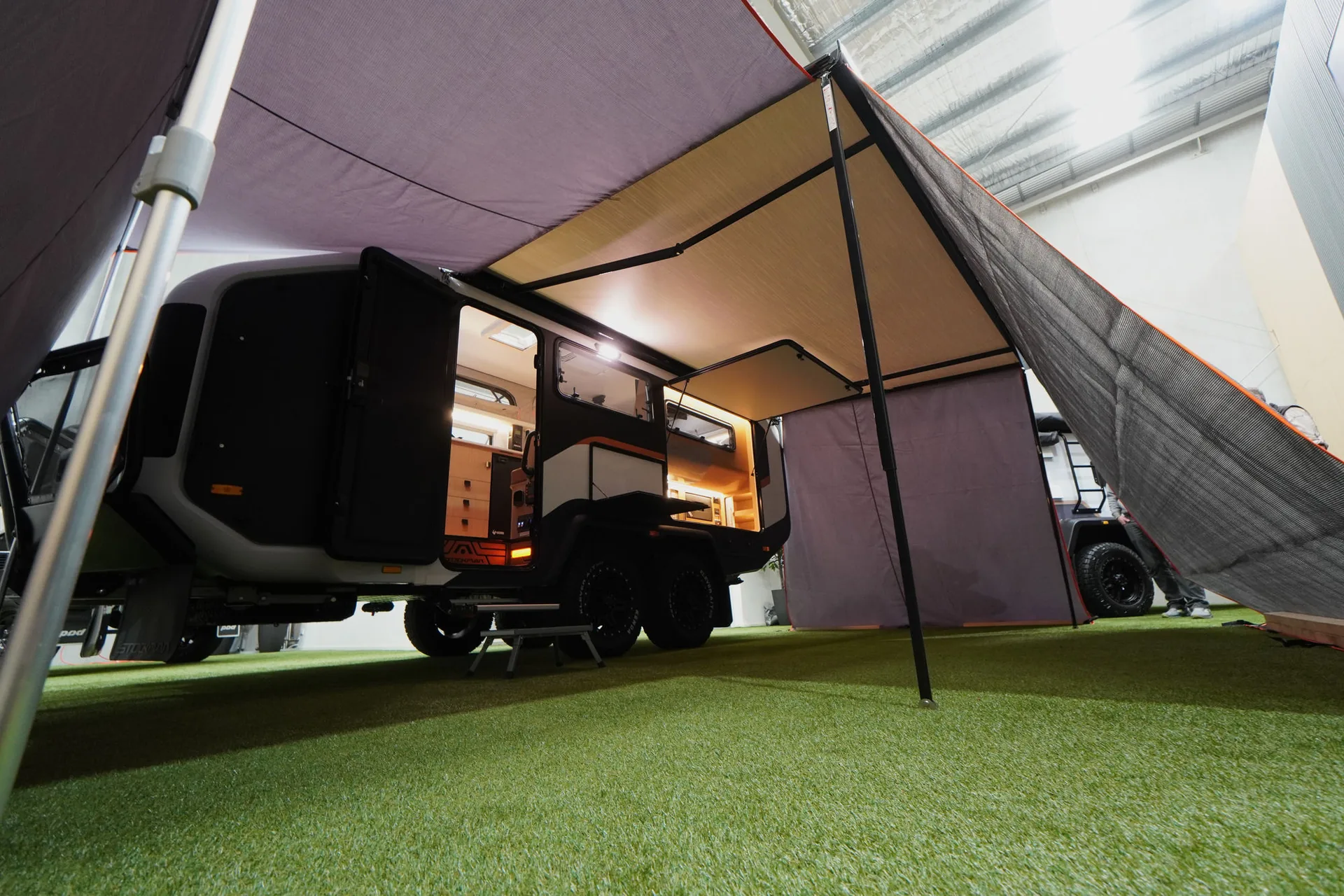

Electric roof, awning and fold-out step — set up camp without unfolding anything by hand.
| Spec | On-Road | Ultra XT | Platinum XT |
|---|---|---|---|
| Tare weight | 2,435kg* | 2,485kg* | 2,540kg* |
| ATM | 3,100kg* | 3,100kg* | 3,400kg* |
| Ball weight | 135kg* | 135kg* | 152kg* |
| Dimensions | 6.5m L × 2.25m W | 6.5m L × 2.25m W | 6.5m L × 2.25m W |
| Travel height | 2.45m (2.65m with aircon) | 2.50m (2.70m with aircon) | 2.50m (2.70m with aircon) |
| Suspension | Cruisemaster tandem independent coil spring | Cruisemaster tandem independent airbag with dual shock absorbers | Cruisemaster airbag with auto-levelling Body Control System |
| Brakes | 10″ electric drum brakes | 12″ electric drum brakes | 12″ electric drum brakes |
| Wheels / tyres | 17″ alloys with 235/65 R17 highway tyres | 17″ alloys with 265/65 R17 Maxxis RAZR A/T tyres | 17″ alloys with 265/65 R17 Maxxis RAZR A/T tyres |

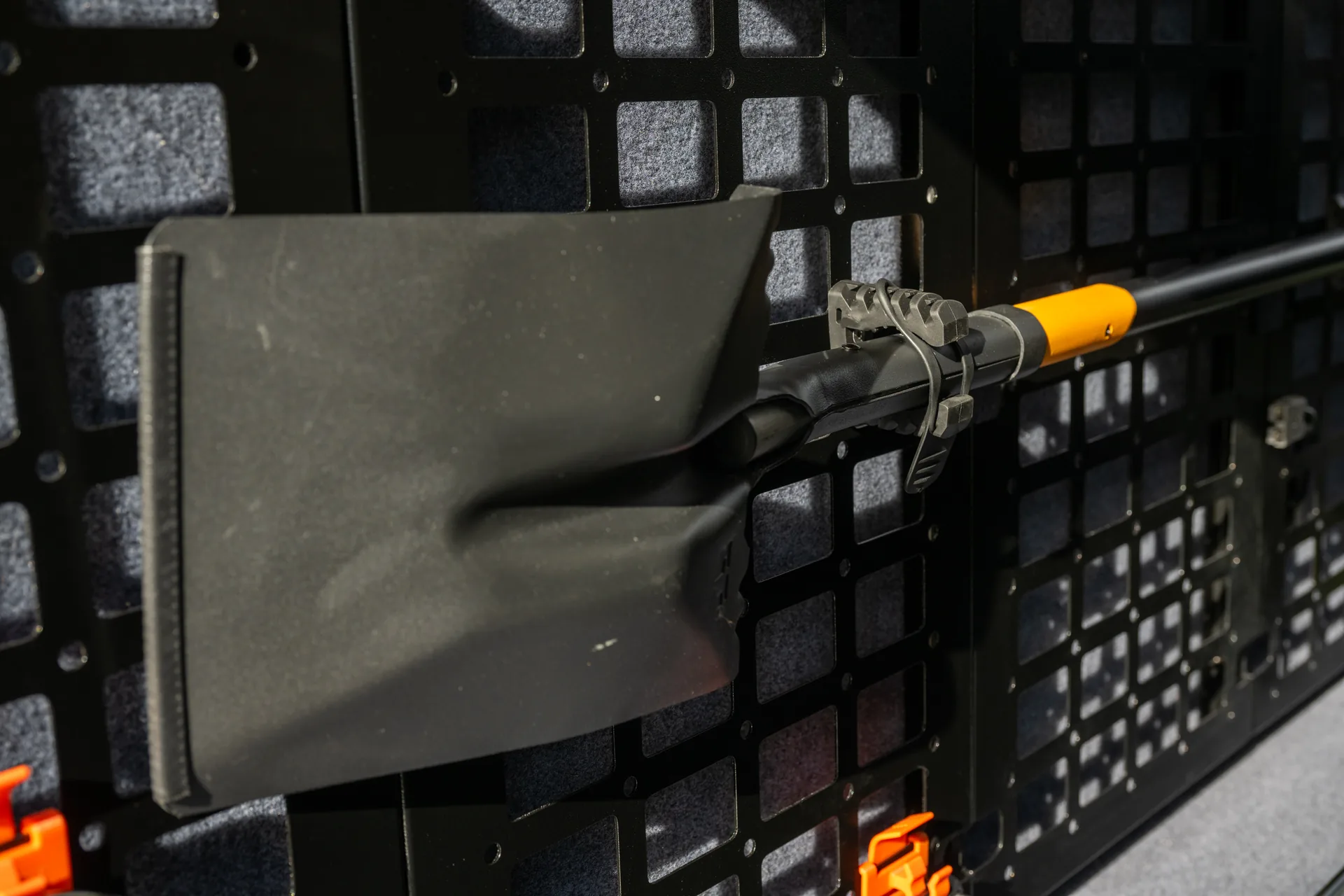

| Nosecone | Extra-large fibreglass nosecone with Molli panel wall system | Extra-large fibreglass nosecone with Molli panel wall system | Extra-large fibreglass nosecone with Molli panel wall system |
| Hitch / supports | DO35 hitch, Ark XO750 swing-up jockey wheel and wind-down stabiliser legs | DO35 hitch, Ark XO750 swing-up jockey wheel and wind-down stabiliser legs | DO35 hitch, Ark XO750 swing-up jockey wheel and wind-down stabiliser legs |
| Sleeping | Queen inner-spring mattress, under-bed drawers and two ceiling fans | Queen inner-spring mattress, under-bed drawers and two ceiling fans | Queen inner-spring bed with under-bed drawers, two ceiling fans and double-stitched diamond upholstery |
| Living | Dinette with swing-out table | Dinette with swing-out table | Dinette with swing-out table |

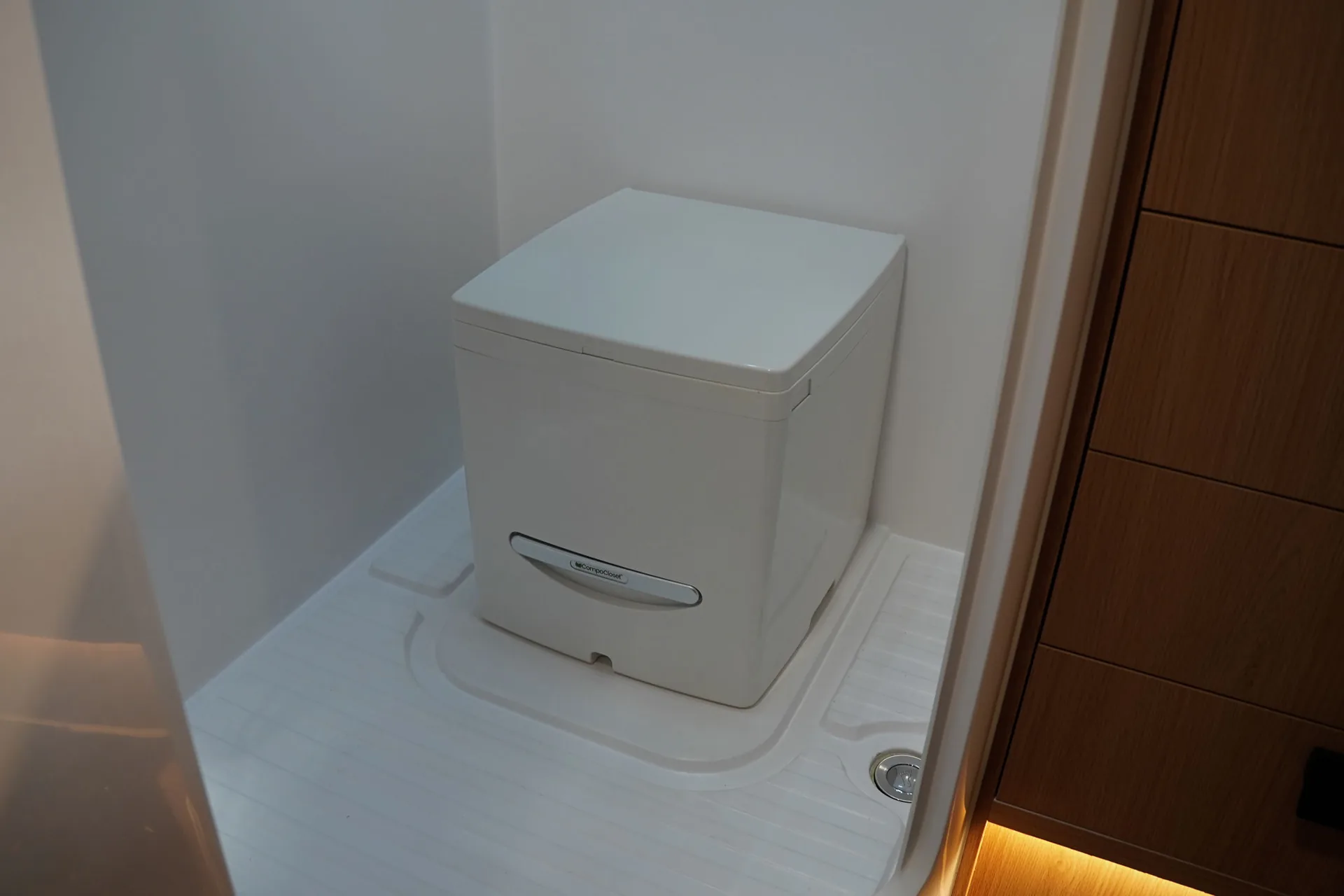

| Bathroom | Internal shower and flushing cassette toilet | Internal shower and flushing cassette toilet | Internal shower and flushing cassette toilet |
| External kitchen | Alcove kitchen with double induction cooktop, sink plumbed to grey tank | Alcove kitchen with double induction cooktop, sink plumbed to grey tank | Alcove kitchen with double induction cooktop, sink plumbed to grey tank |

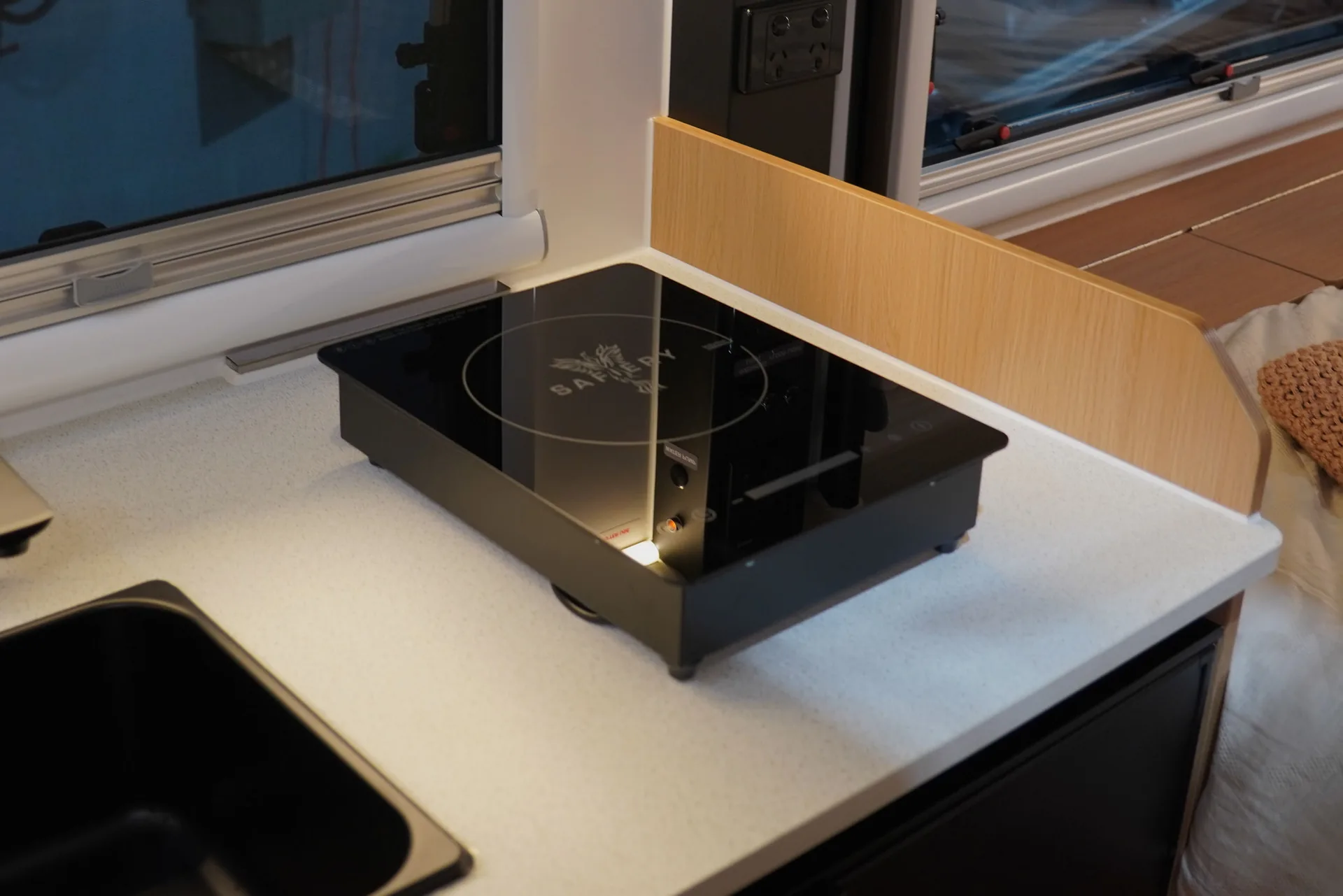

| Internal cooker | Optional portable induction cooker | Optional portable induction cooker | Portable induction cooker |
| Fridge | 130L upright Bushman fridge with freezer | 130L upright Bushman fridge with freezer | 130L upright Bushman fridge with freezer |
| Drawer fridge | Optional 30L external drawer fridge | Optional 30L external drawer fridge | 30L external drawer fridge |
| Water | 200L fresh, 120L grey water, town water inlet | 200L fresh, 120L grey water, town water inlet | 200L fresh, 120L grey water, town water inlet |
| Heating | Truma diesel hot water and air heating | Truma diesel hot water and air heating | Truma diesel hot water and air heating |
| Air conditioning | Optional Webasto off-grid air conditioner | Webasto off-grid air conditioner | Webasto off-grid air conditioner |
| Power system | Renogy 70A AC / 50A DC-DC / 60A MPPT charging, 3000W inverter, touchscreen control | Renogy 70A AC / 50A DC-DC / 60A MPPT charging, 3000W inverter, touchscreen control | Renogy 70A AC / 50A DC-DC / 60A MPPT charging, 3000W inverter, touchscreen control |
| Battery | 300Ah lithium | 600Ah lithium | 900Ah lithium |
| Roof solar | 400W | 600W | 800W |

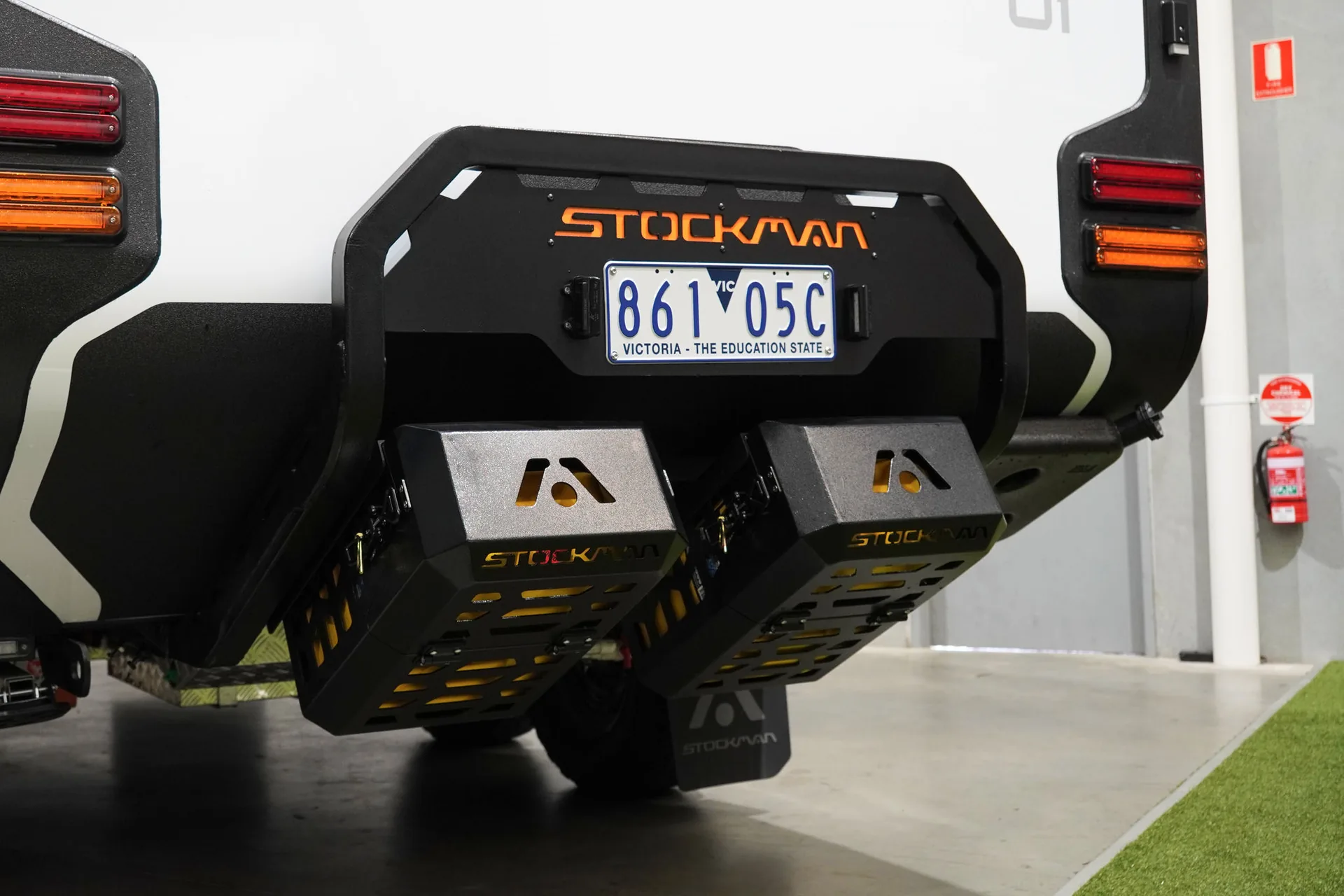

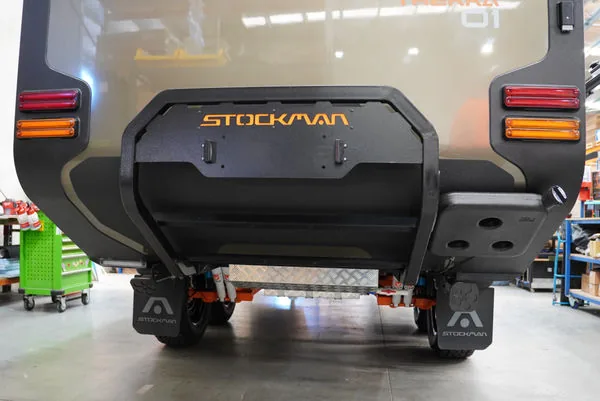

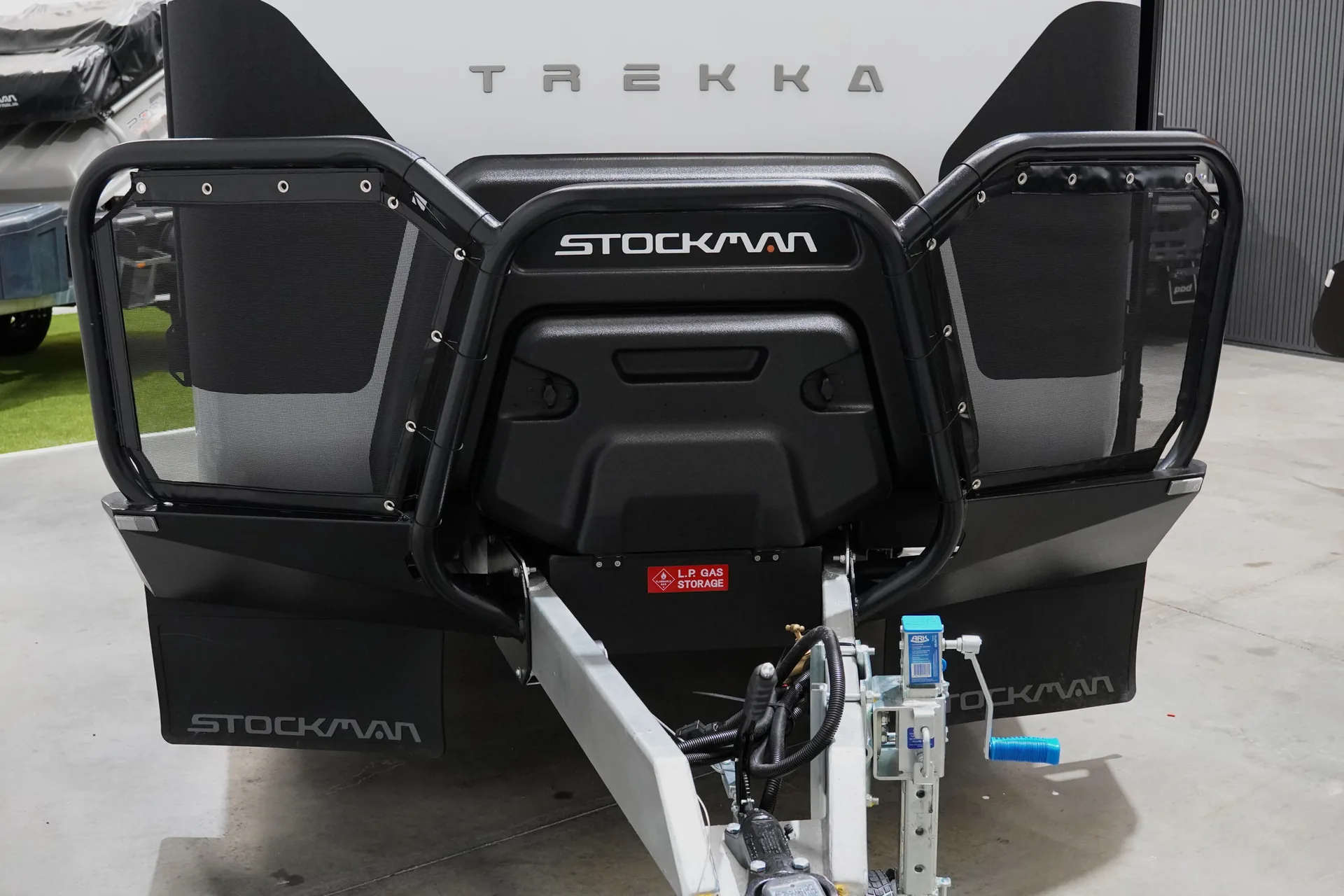

| Exterior protection | Optional stone guard and rear protection bar | Stone guard fitted; optional rear protection bar | Stone guard and rear protection bar fitted |

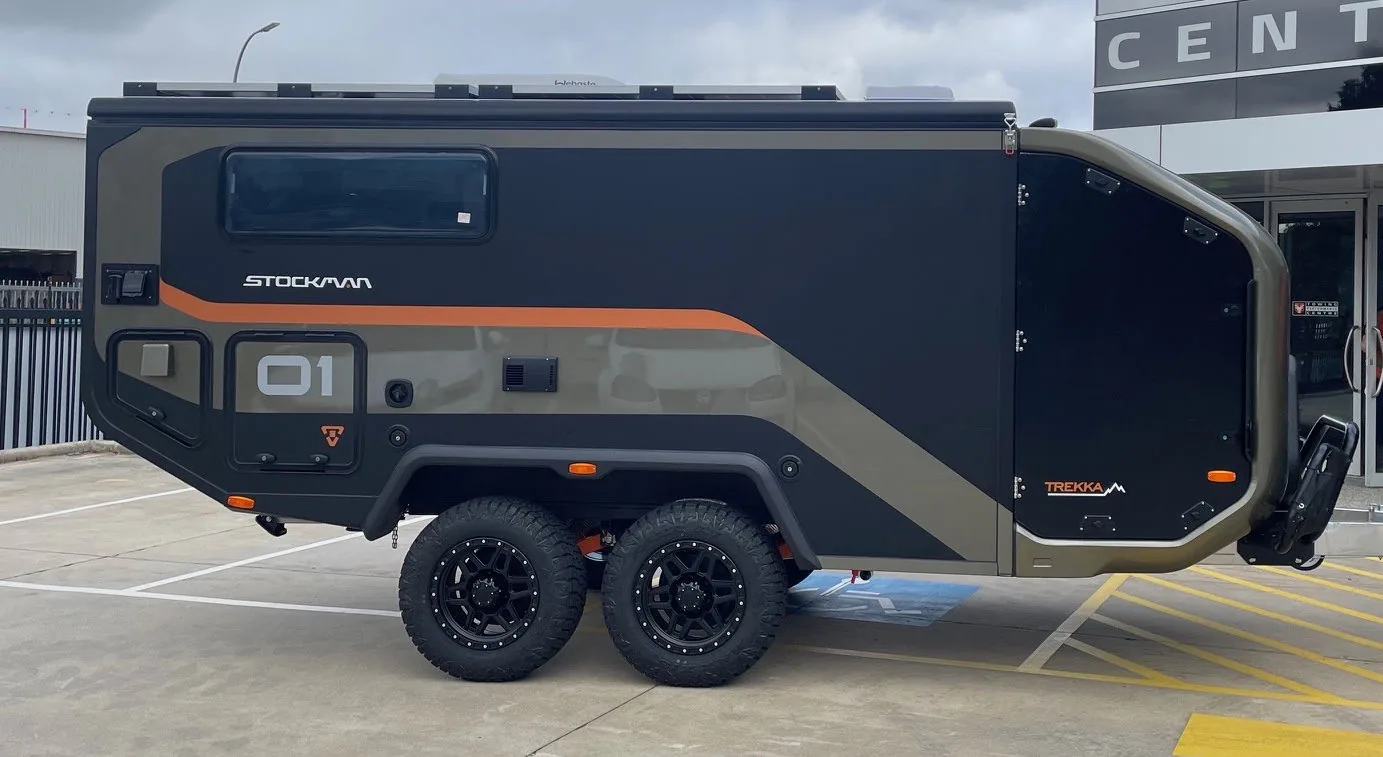

| Finish | Standard upholstery; choice of 3 colours optional | Standard upholstery; choice of 3 colours optional | Diamond upholstery and Autumn Green exterior colour |
Specifications vary with selected options and are confirmed in your build.
What owners ask about most. Some come standard on Ultra XT or Platinum XT, others are upgrades — your build flow shows what applies to your version.

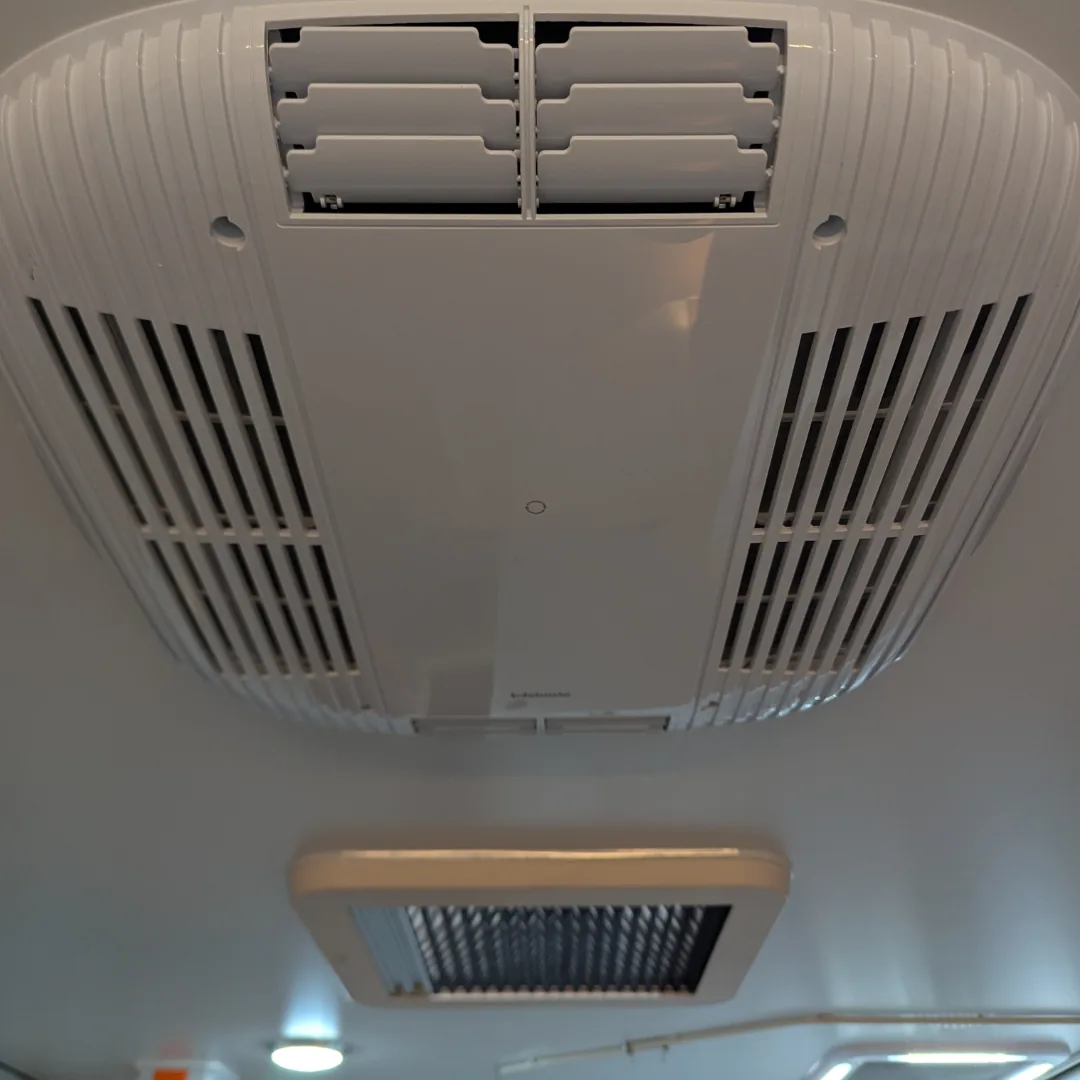

Low-draw rooftop aircon that runs off battery and solar — standard on Ultra XT and Platinum XT, available as an upgrade on On-Road.
Standard across the range. 70A AC, 50A DC-DC and 60A MPPT solar charging, 3000W inverter, Bluetooth touchscreen with built-in inclinometer.
Internal hot and cold water and cabin heating from a single Truma diesel system. Standard on every Trekka.

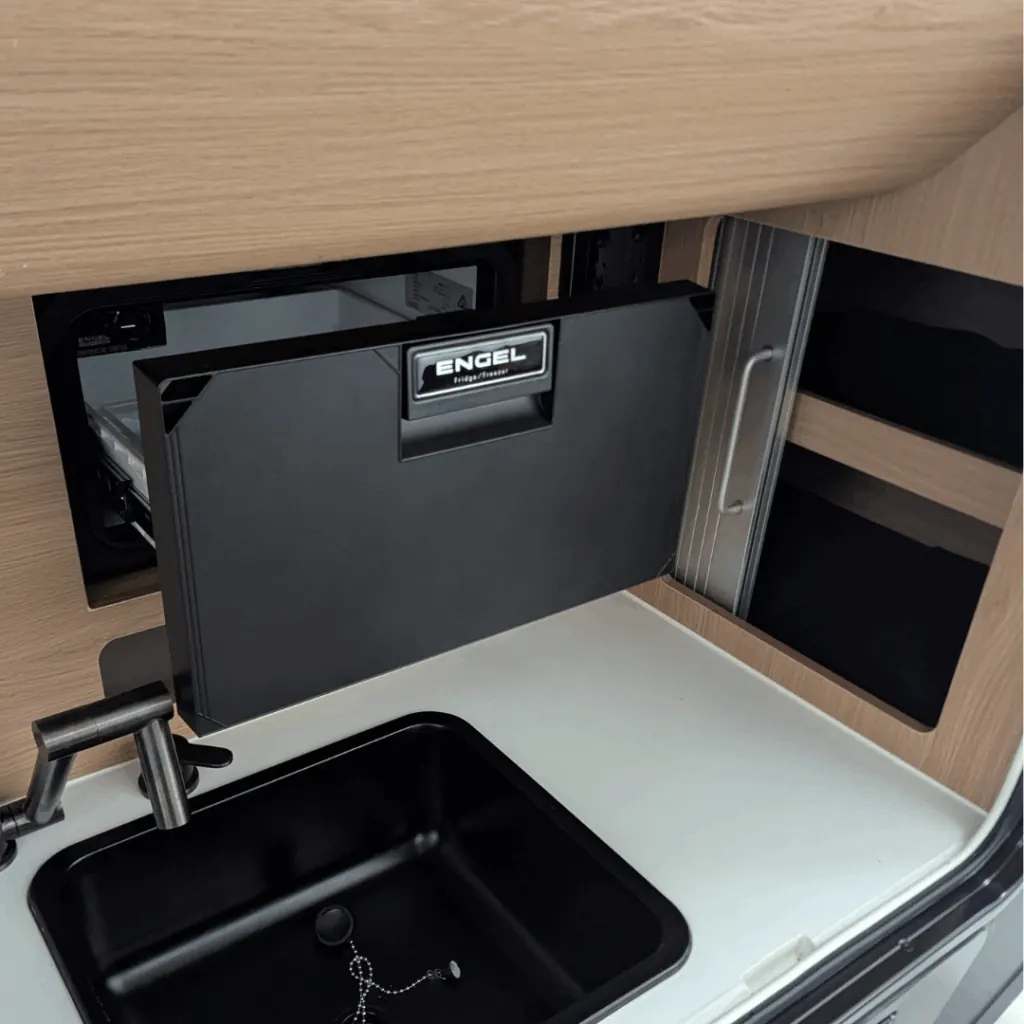

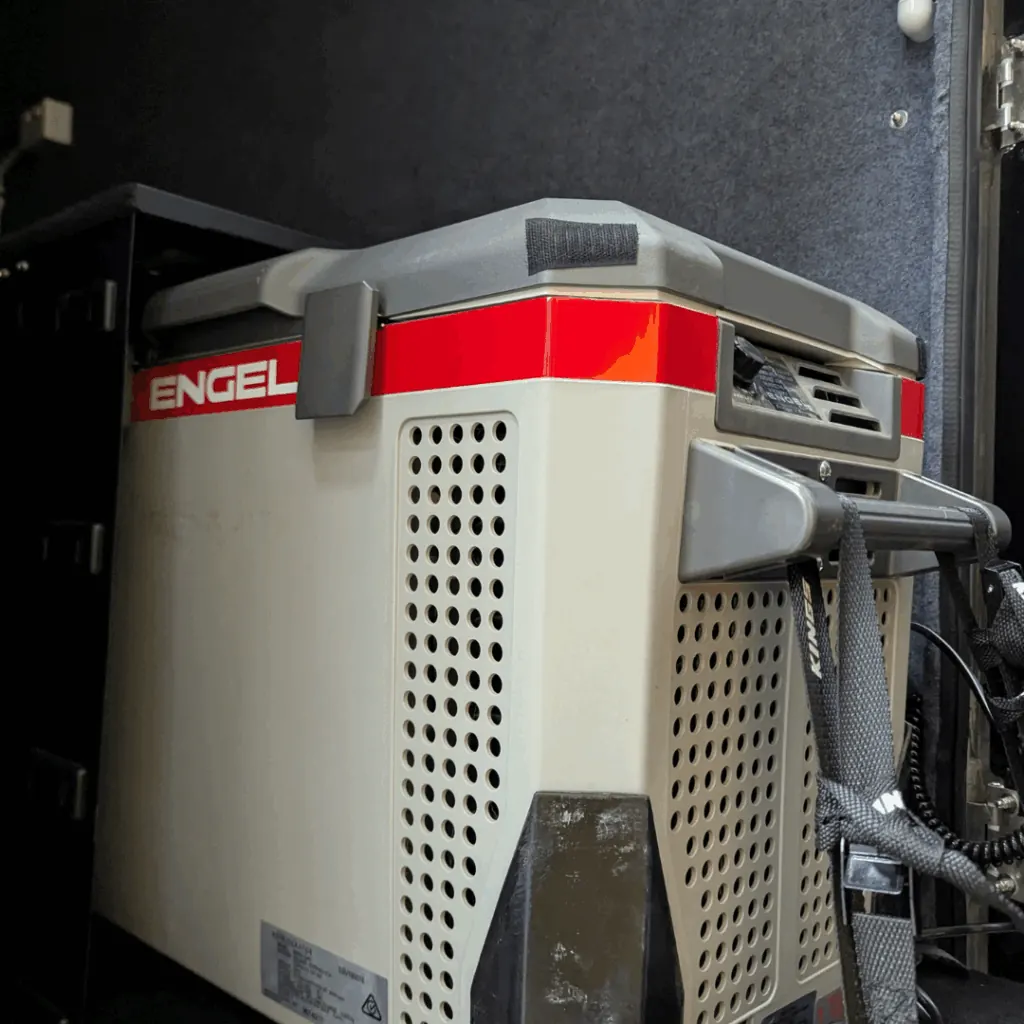

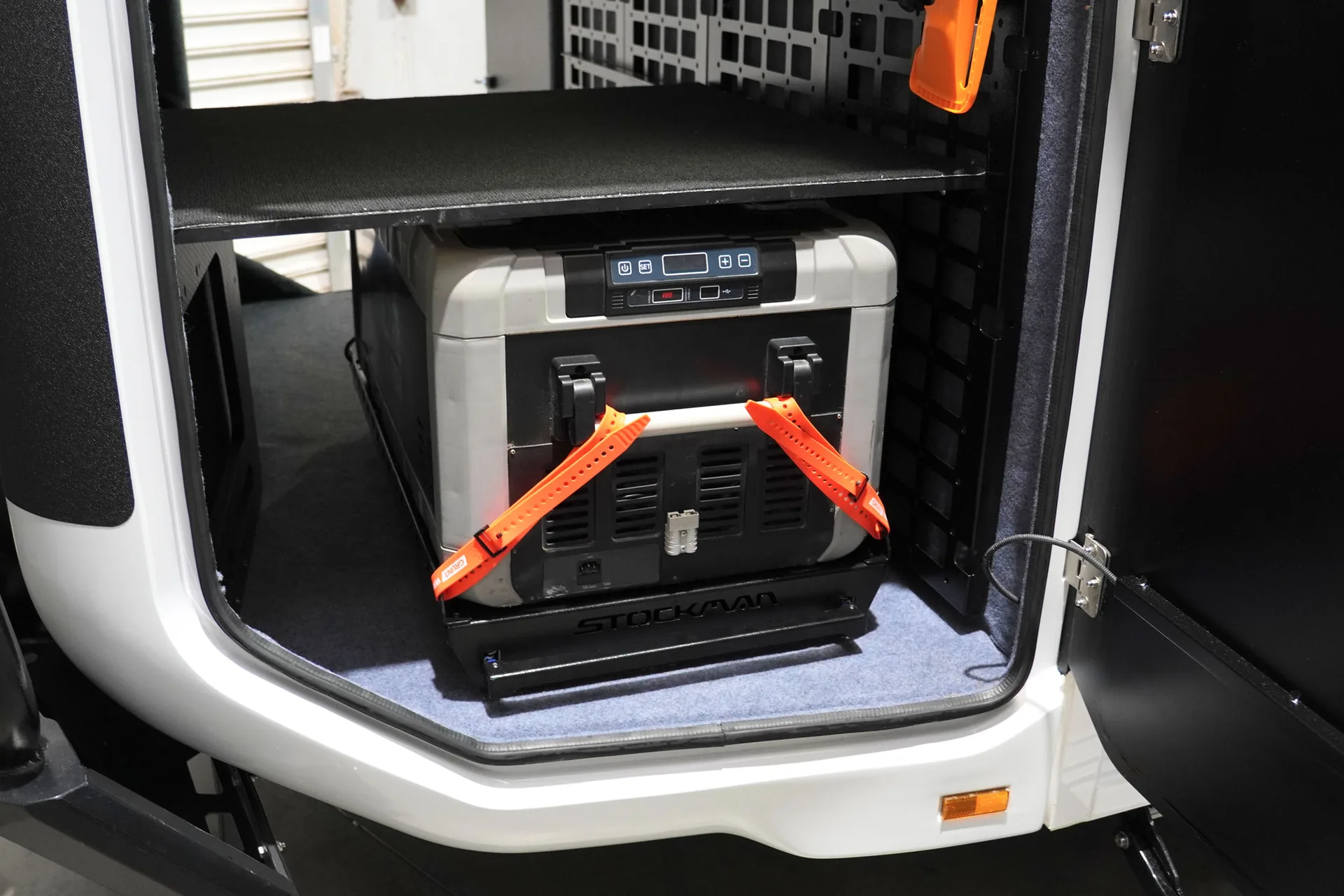

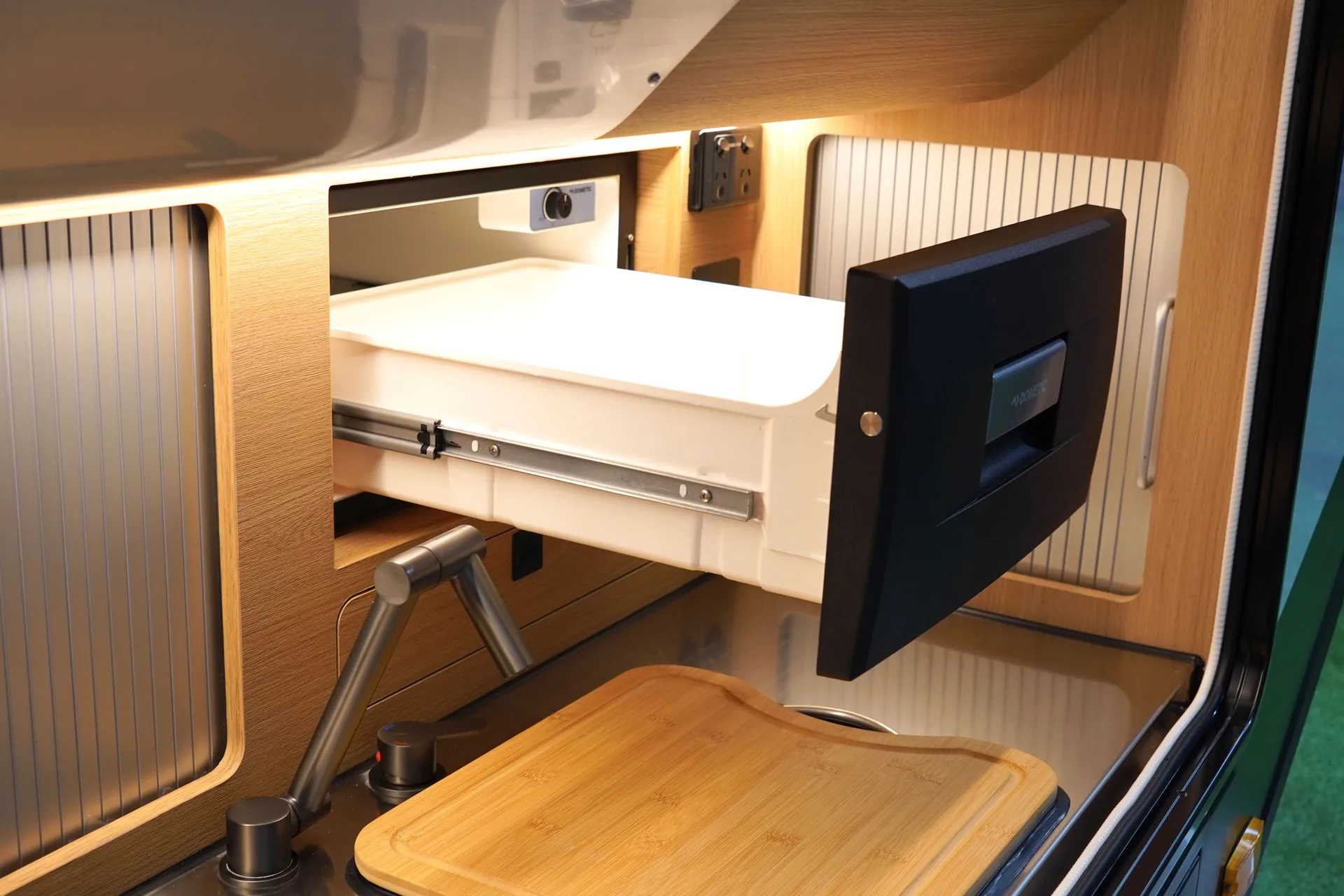

A drawer fridge in the alcove kitchen — grab cold drinks or lunch without opening the cabin door. Standard on Platinum XT, available as an upgrade on On-Road and Ultra XT.

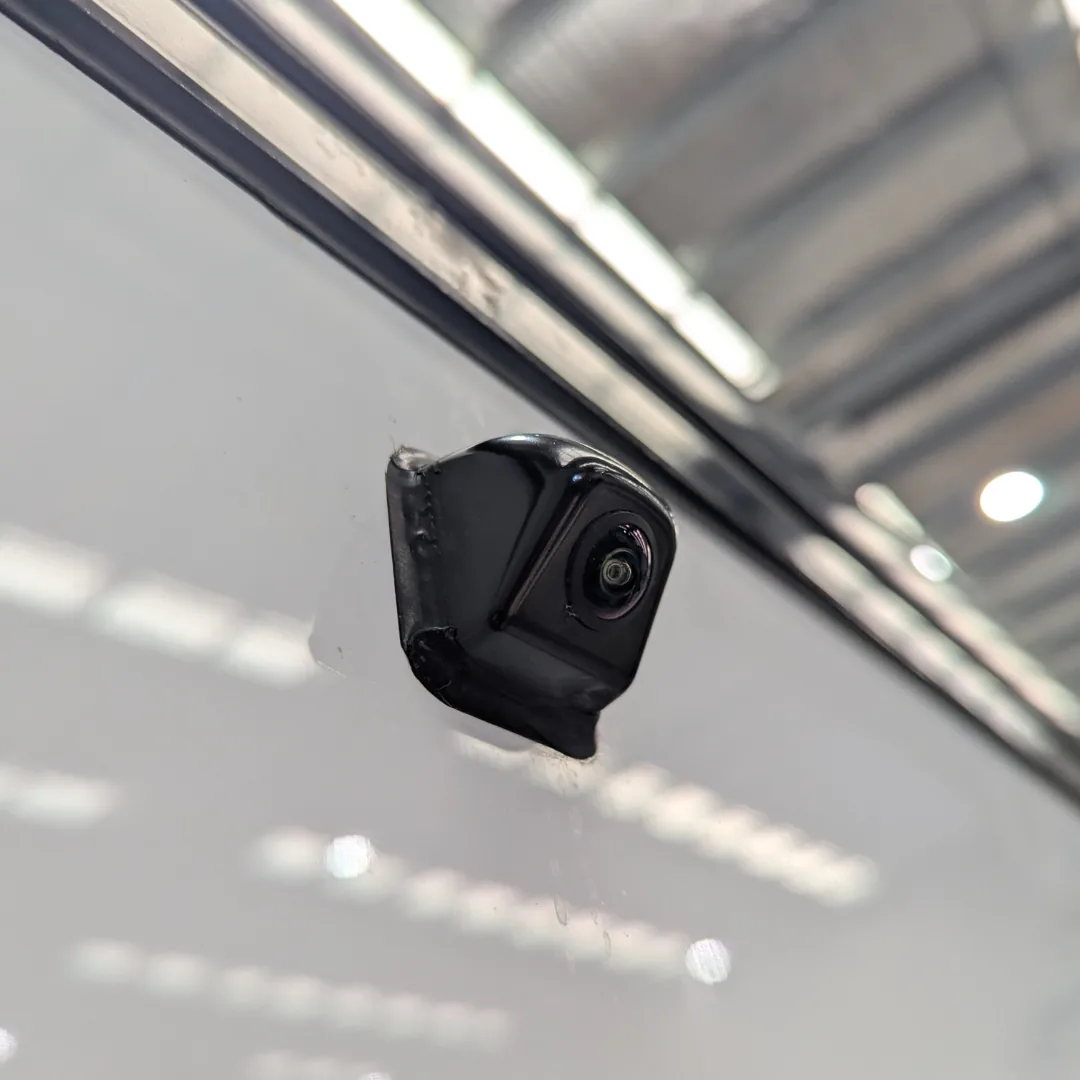

Reverse-view camera with a Bluetooth 5″ screen — hitch up and back into tight sites without the guesswork. Available across the range.

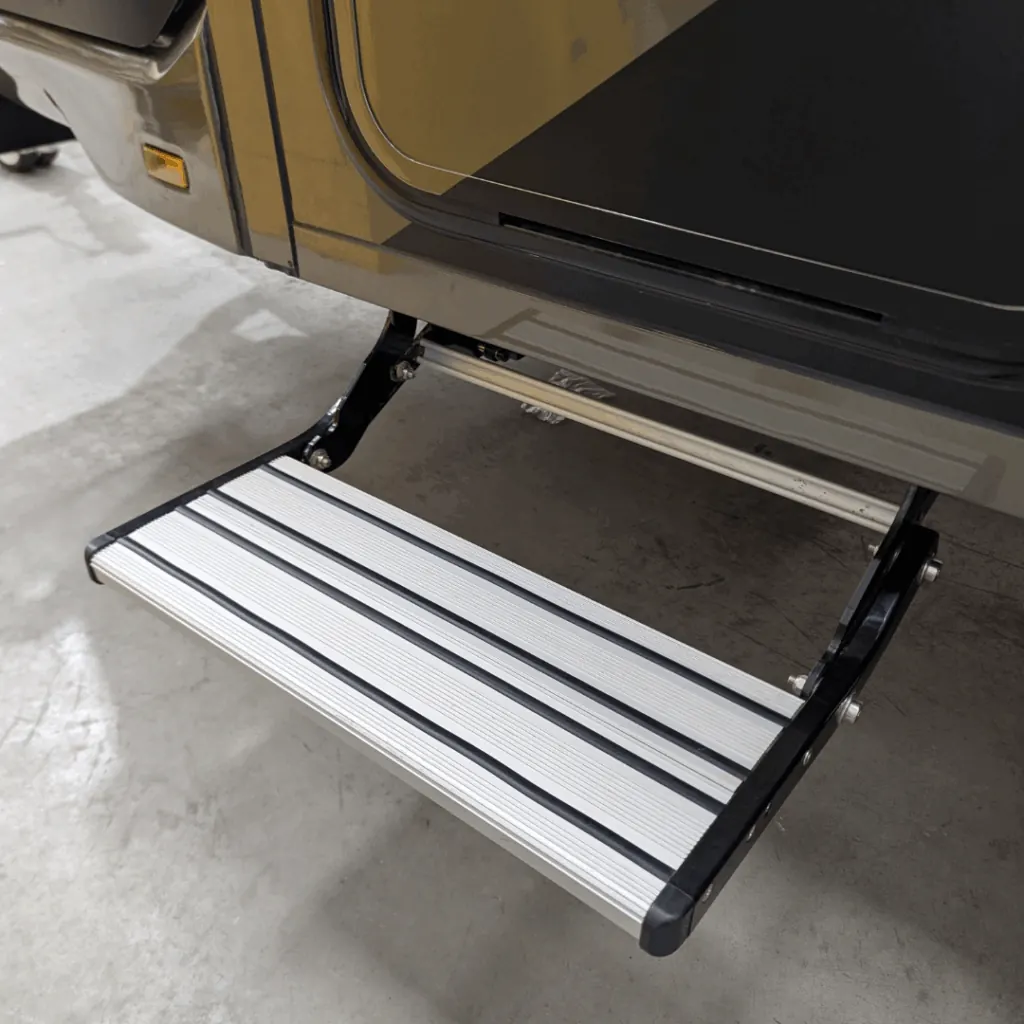

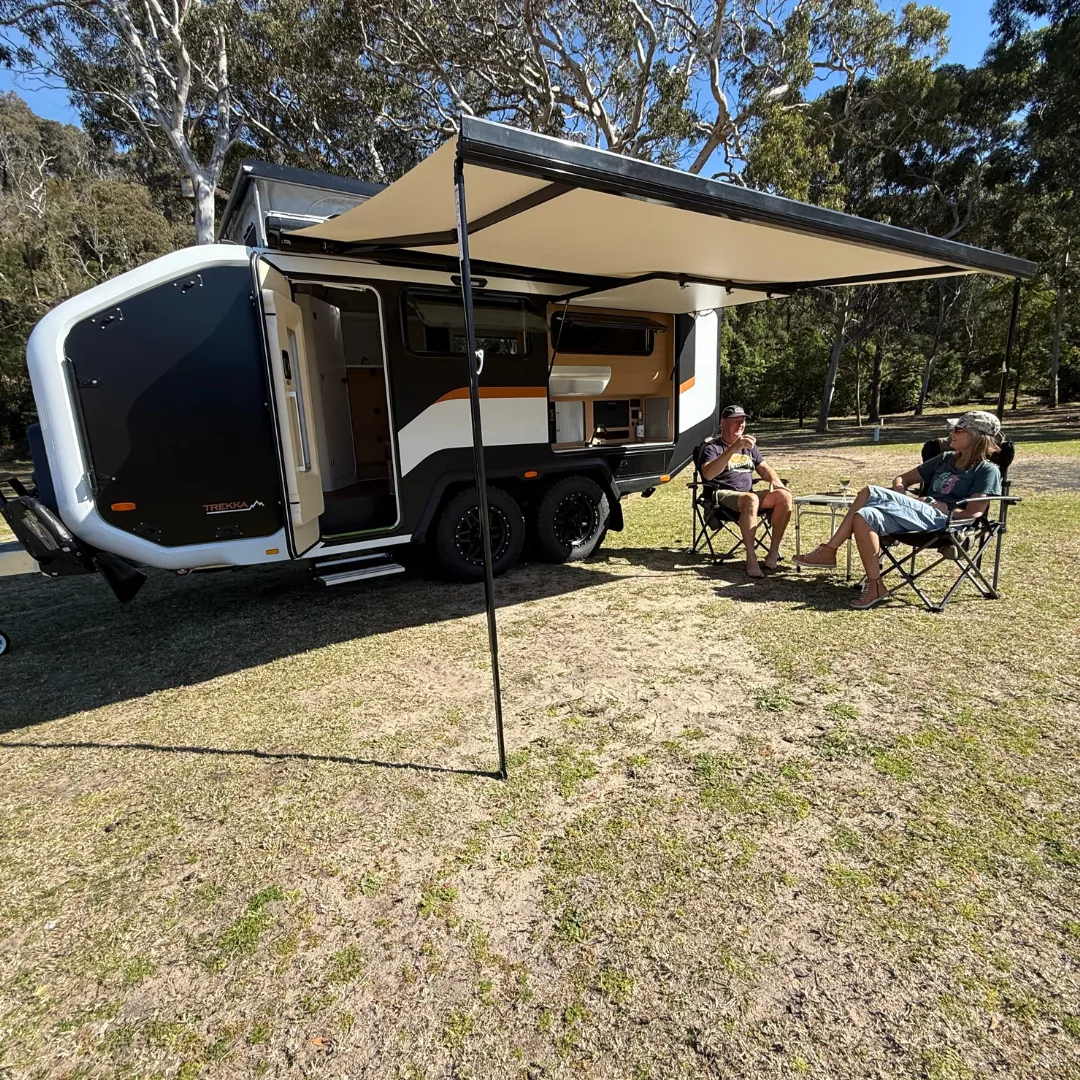

Electric roof, electric awning and electric fold-out step — push button, done. Standard on every Trekka.

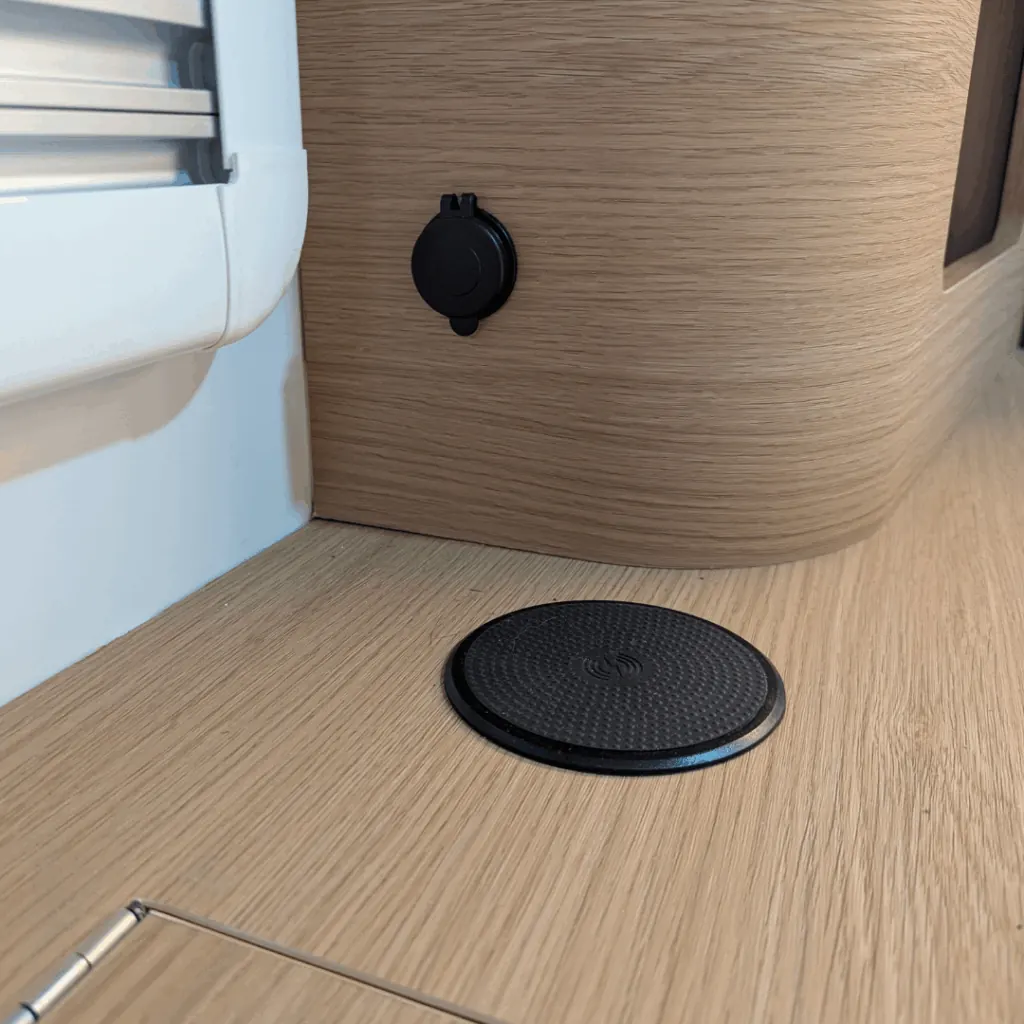

Built-in phone pad chargers where you drop your gear at night — fewer cables in the cabin.

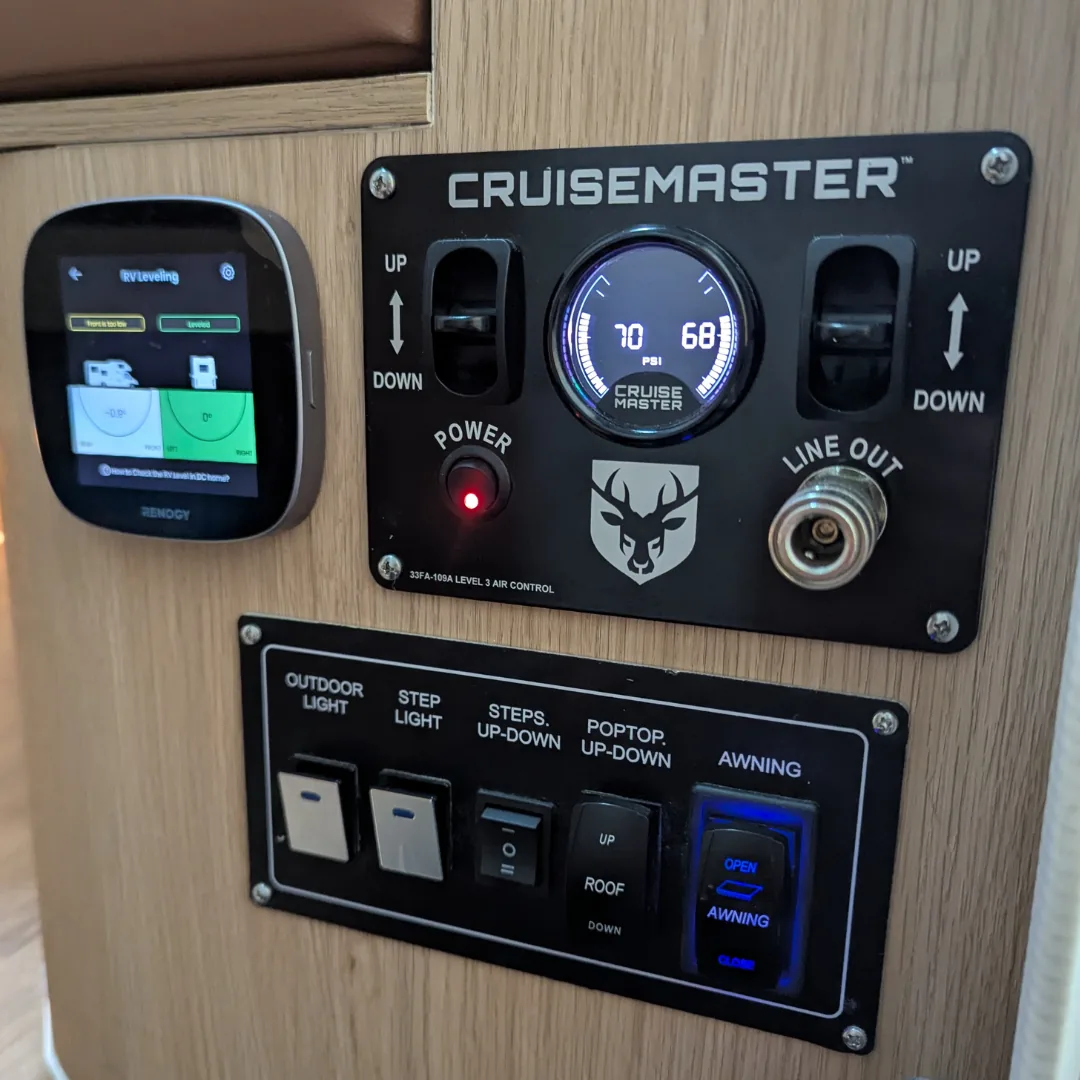

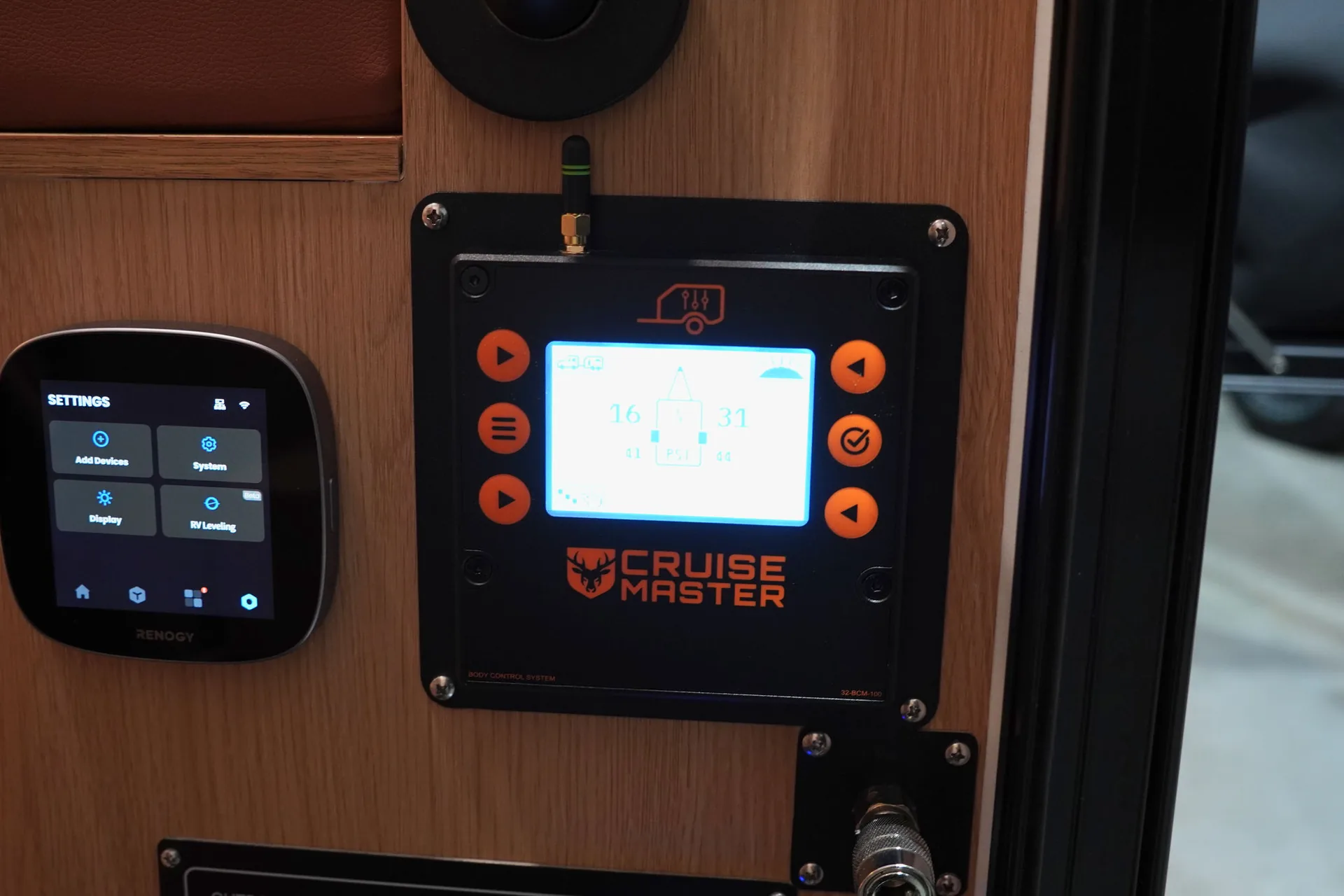

Cruisemaster Body Control System levels the camper at the push of a button — handy on sloping sites. Standard on Platinum XT, available as an upgrade on Ultra XT.
Several of these come standard on Ultra XT and Platinum XT. Your final list is confirmed when you build your Trekka.
Pick On-Road, Ultra XT or Platinum XT, then add the off-road, comfort and storage options.
